HandsFreeLink Control Unit Connector End View (Navigation: USA RTL, Canada EX-L) (View 262)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
HandsFreeLink Control Unit Connector End View (Navigation: USA RTL, Canada EX-L) (View 262)
GRY
Under middle of dash
On dashboard wire harness (right branch)

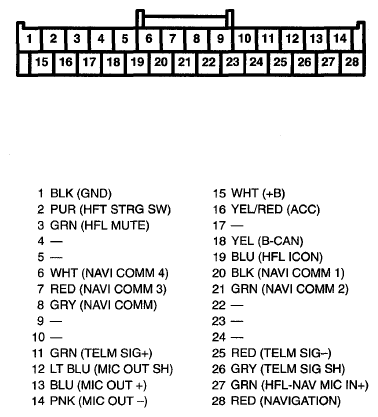

Fig 1: HandsFreeLink Control Unit Connector Terminal (Navigation: USA RTL, Canada EX-L) (View 262)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
