Right Front Turn Signal/Side Marker Light Connector End View (View 147)

• WHT
• Behind right headlight assembly
• On right engine compartment wire harness

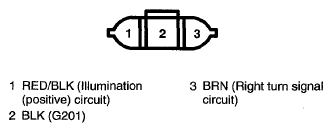

Fig 1: Right Front Turn Signal/Side Marker Light Connector Terminal (View 147)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
