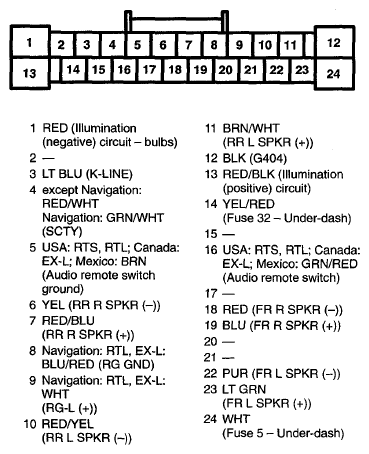

Audio Unit Connector End View (View 268)

Connector A

• GRY
• On dashboard wire harness (right branch)

Fig 1: Audio Unit Connector Terminal (View 268)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

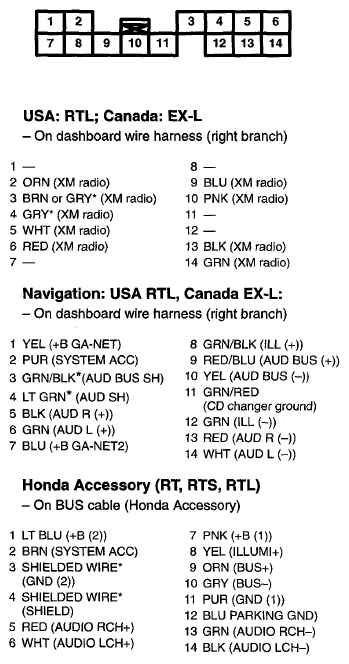

Connector B

• WHT

  USA: RTL; Canada: EX-L

  • On dashboard wire harness (right branch)

  Navigation: USA RTL, Canada EX-L

  • On dashboard wire harness (right branch)

  Honda Accessory (RT, RTS, RTL)

  • On Bus cable (Honda Accessory)
  Fig 2: Connector B Terminal (View 268)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

  * = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

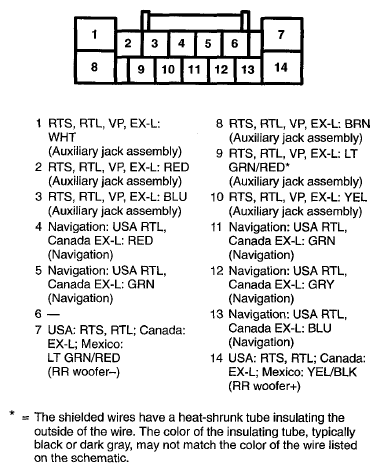

  Connector C

  • GRY
  • On dashboard wire harness (right branch)
  Fig 3: USA: RTL; Canada: EX-L Connector Terminal (View 268)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

  * = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

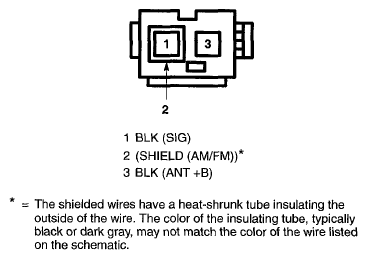

  Connector D

  • GRY
  • On dashboard wire harness (right branch)
  Fig 4: Connector D Terminal (View 268)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

  * = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
