Cruise Control Combination Switch Connector End View (View 230)
WHT
Steering wheel
On cable reel sub-harness

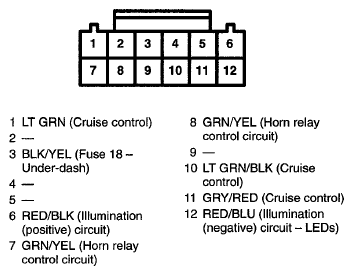

Fig 1: Cruise Control Combination Switch Connector Terminal (View 230)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
