Cruise Control Switch: Service and Repair

Cruise Control Combination Switch Test/Replacement

SRS components are located in this area. Review the SRS component locations, Locations and the precautions and procedures, Technician Safety Information in the SRS before doing repairs or service.

1. Remove the driver's airbag. Drivers Airbag Replacement

2. Remove the steering wheel. Steering Wheel Removal

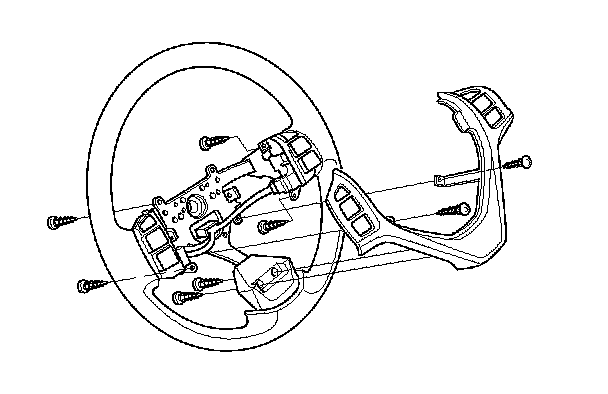

3. Remove the steering wheel trim.

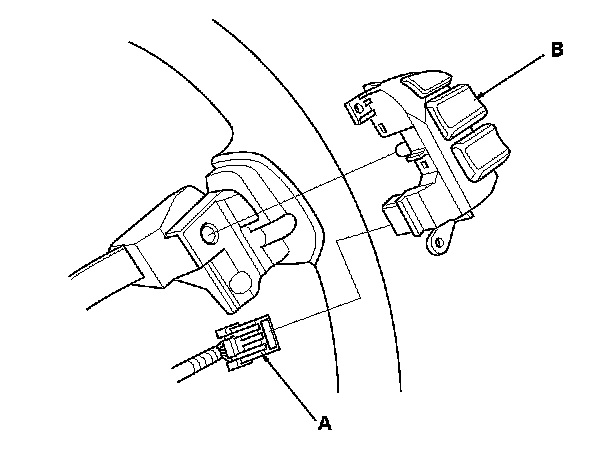

4. Disconnect the 12P connector (A), then remove the cruise control combination switch (B).

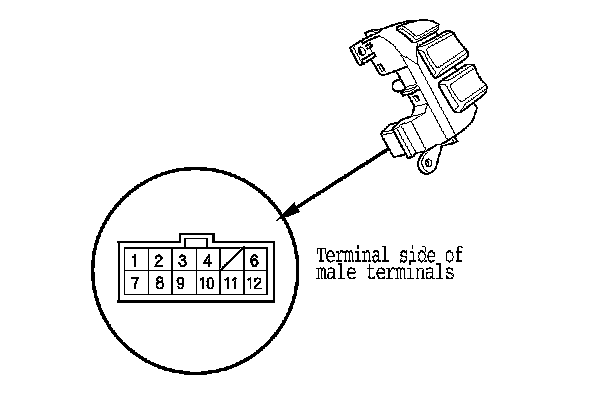

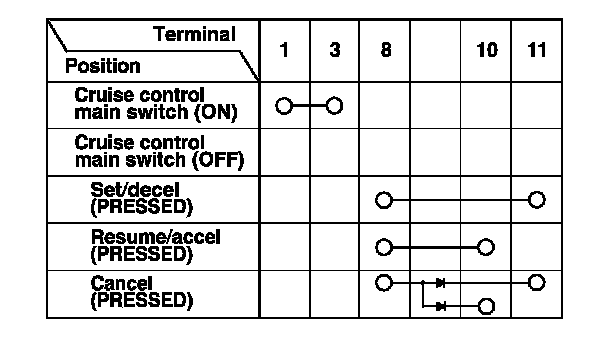

5. Check for continuity between the terminals in each switch position according to the table.
- If there is continuity, and it matches the table, but switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.

- If there is no continuity in one or more positions, replace the switch.

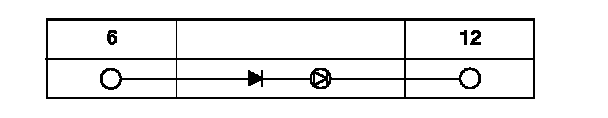

6. Use a diode tester between the terminals according to the chart.
If the diode fails the test, replace the cruise control combination switch.
