Pressure Retaining Mode

VSA NO valve closed, VSA NC valve open, inlet valve closed, outlet valve closed, pump motor ON.

Rear caliper fluid is retained by the inlet valve and outlet valve.

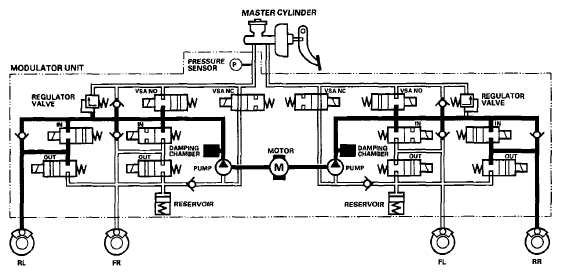

Fig 1: Pressure Retaining Mode Communication Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
