Cruise Control Main Switch/Indicator Illumination Test

Turn the ignition switch ON (II). Turn the lighting switch and the cruise control main switch (A) ON.

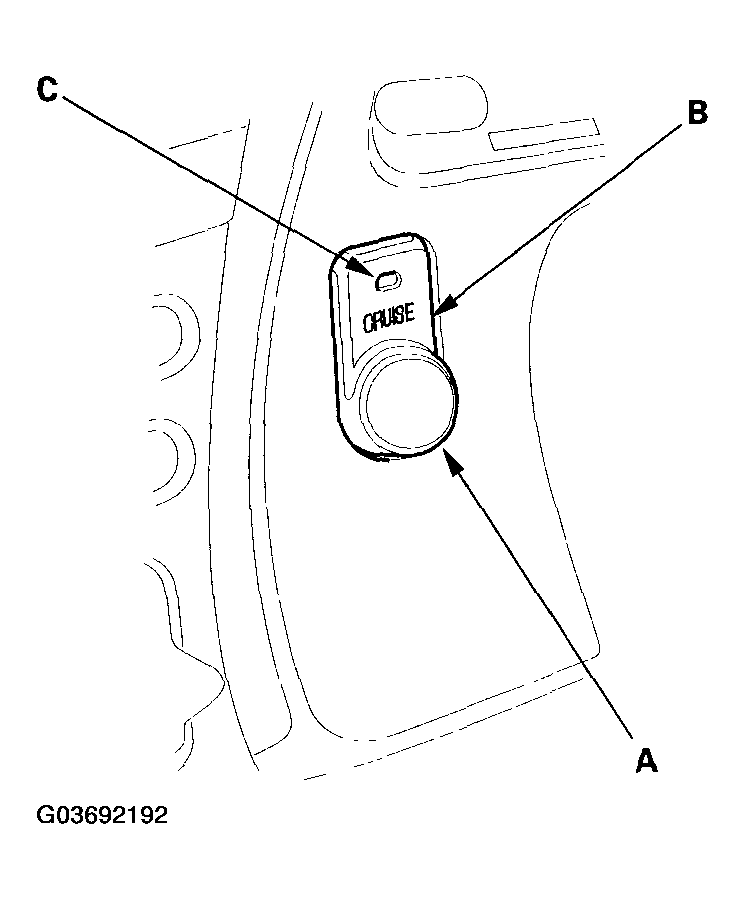

Fig 1: Identifying Illumination Indicator And Indicator Light In Cruise Control Main Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check that the illumination indicator (B) and the indicator light (C) in the cruise control main switch come on.
If the indicator does not come on, remove the switch, and replace the bulb If the bulb is OK, replace the cruise control main switch..
