Audio Unit Removal/Installation

NOTE: Eject the disc before removing the audio unit to prevent damaging the CD player's load mechanism.

Make sure you have the anti-theft code for the audio system, then write down the audio presets.
Remove the radio panel (see RADIO PANEL REMOVAL/INSTALLATION ).
Remove the four mounting screws (A).

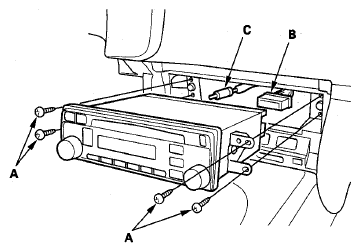

Fig 1: Identifying Mounting Screws, 20P Connector And AM/FM Antenna Lead
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 20P connector (B) and the AM/FM antenna lead (C) from the audio unit.
Install the audio unit in the reverse order of removal.
Enter the anti-theft code for the audio system, then enter the audio presets. Set the clock.
