Sensor Cluster Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use power tools when replacing the sensor.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the rear console (see REAR CONSOLE REMOVAL/INSTALLATION ).
  3. Disconnect the sensor cluster 6P connector (A).

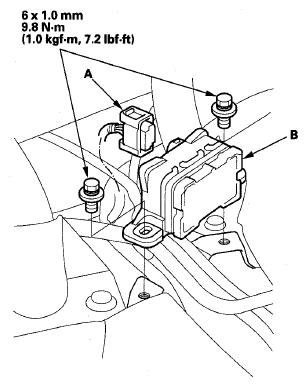

    Fig 1: Sensor Cluster 6P Connector And Sensor Cluster With Torque Specifications
    G06232199Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the sensor cluster (B).
  5. Install the sensor cluster in the reverse order of removal.
  6. Do the VSA sensor neutral position memorization (see SENSOR CLUSTER REPLACEMENT ).
