Wheel Speed Sensor Replacement

NOTE: Install the sensors carefully to avoid twisting the wires.

Front

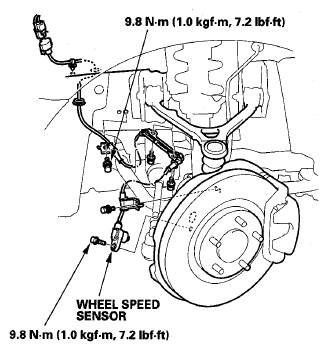

Fig 1: Wheel Speed Sensor - Front With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

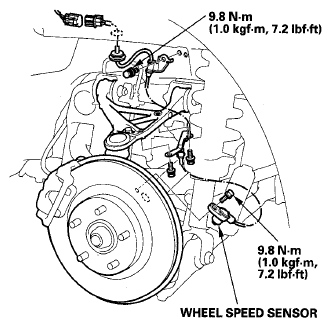

Fig 2: Wheel Speed Sensor - Rear With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
