Component Location Index

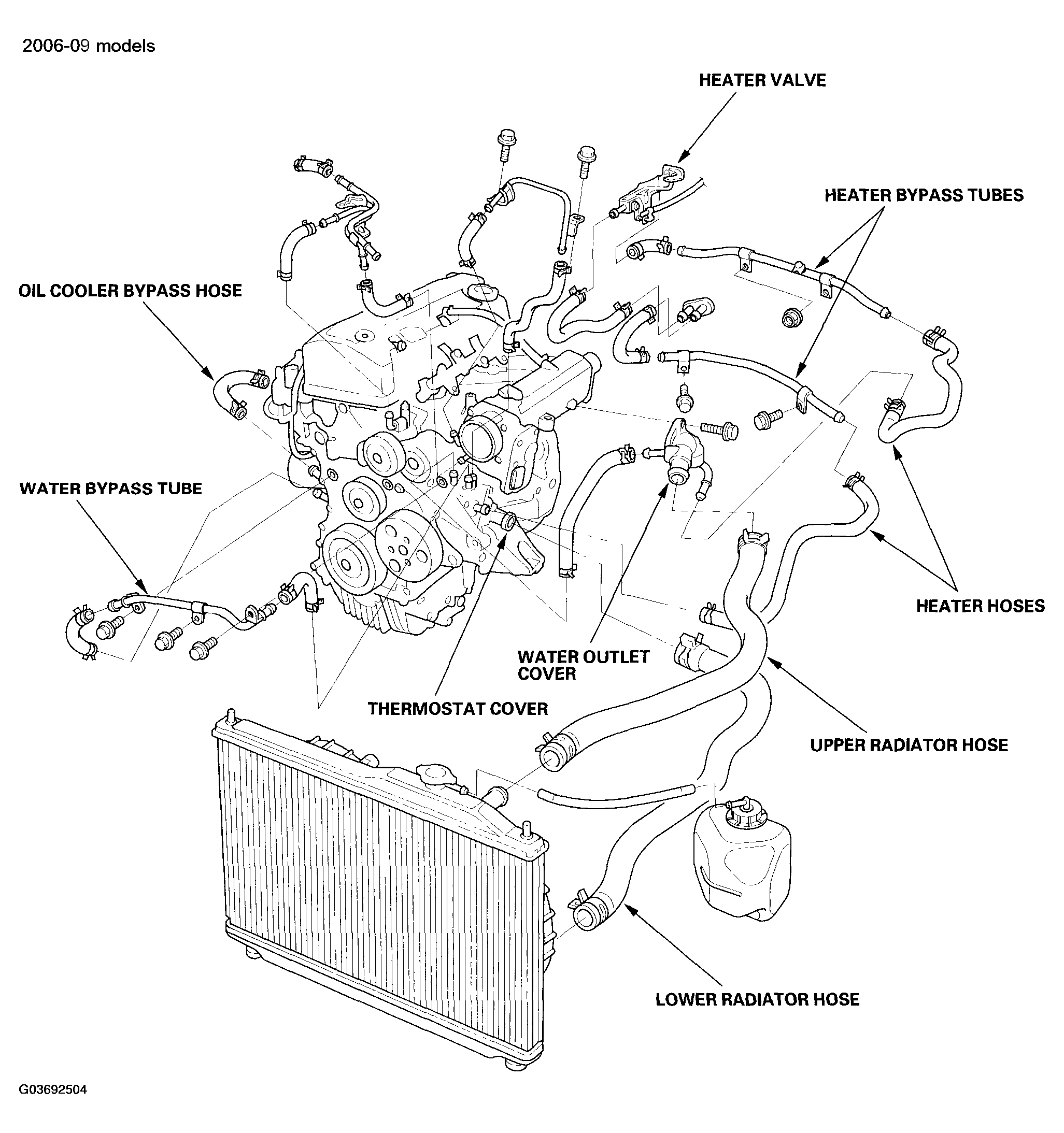

Fig 1: Identifying Cooling System Replacement Components (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

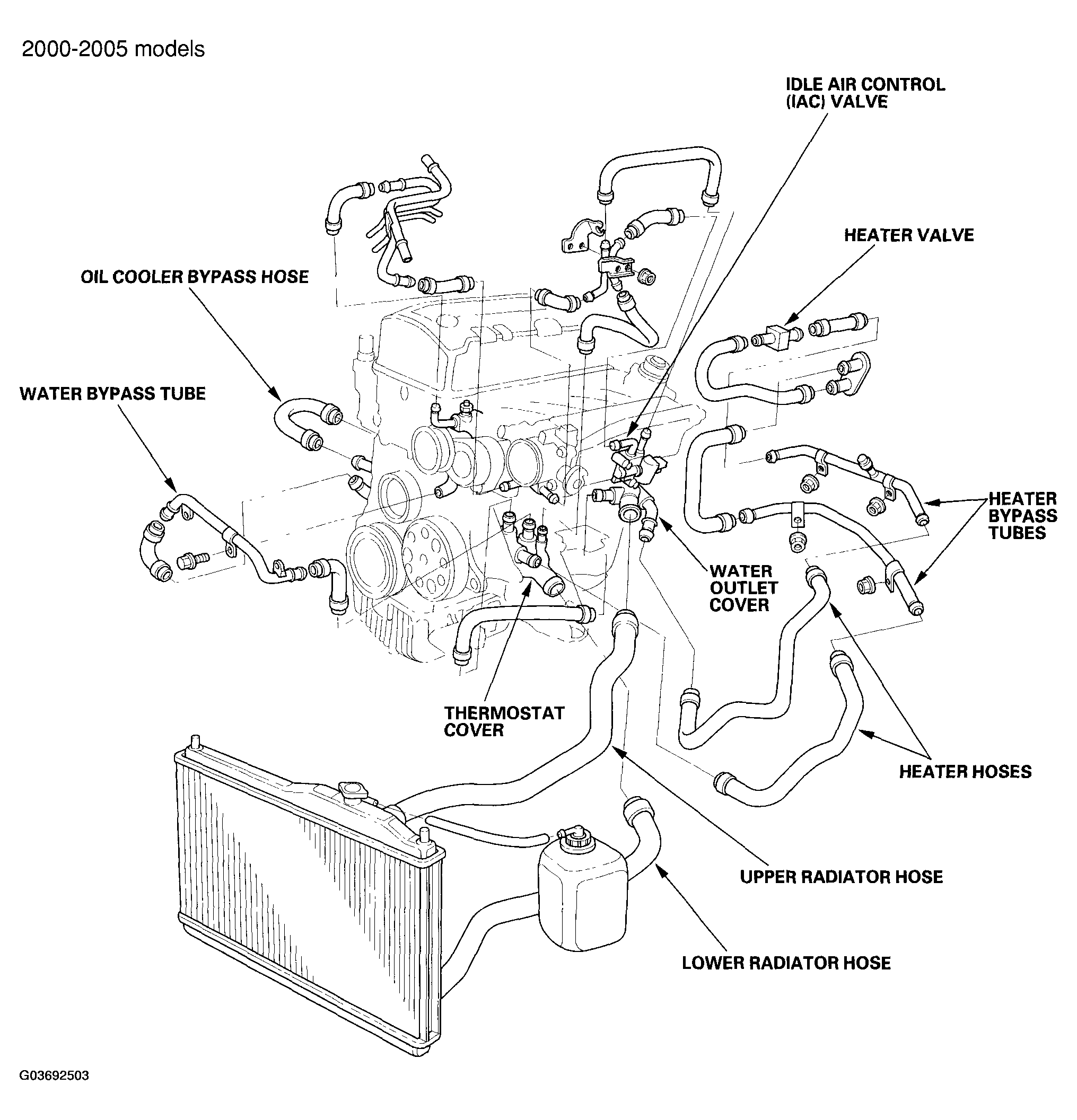

Fig 2: Identifying Cooling System Replacement Components (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

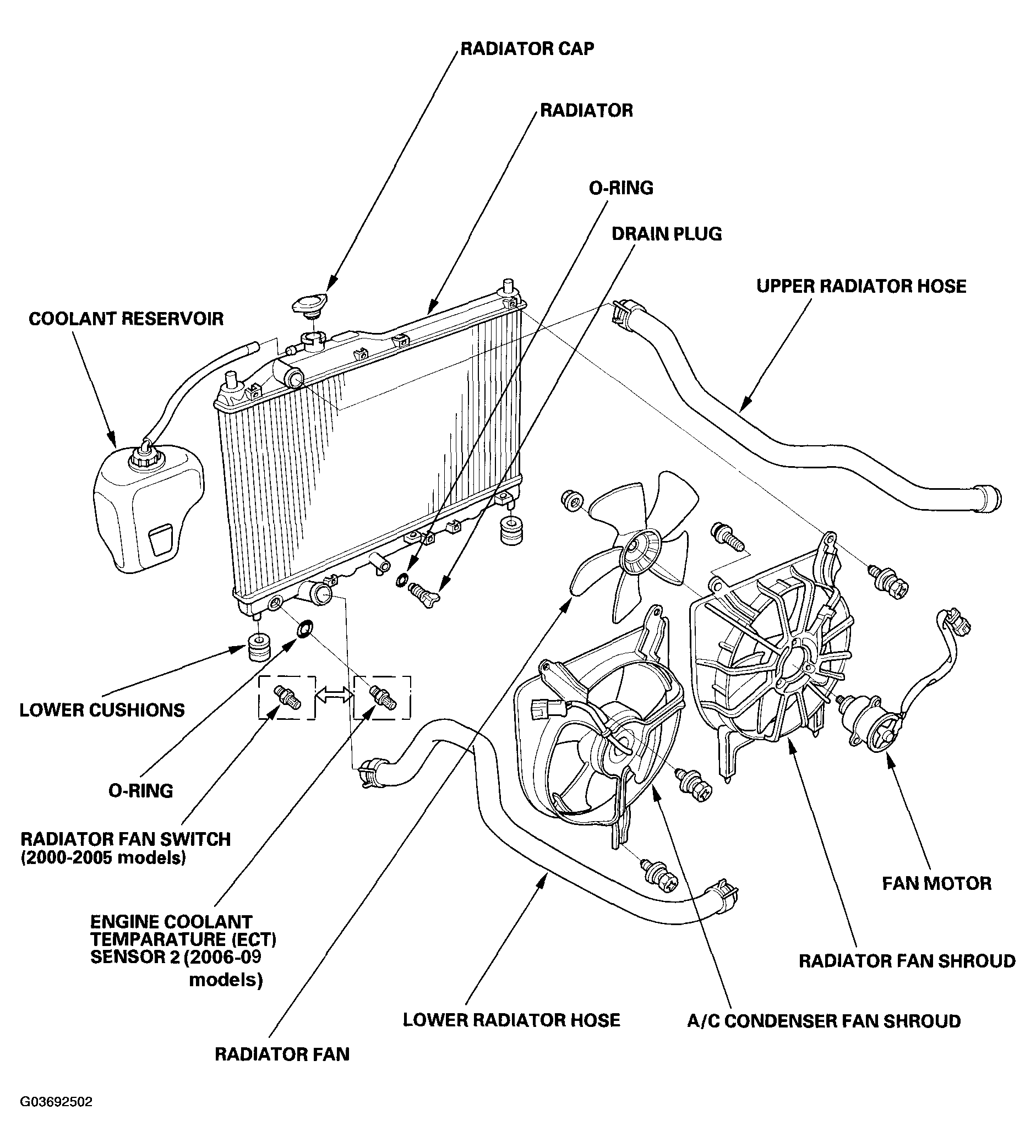

Fig 3: Identifying Cooling System Replacement Components (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

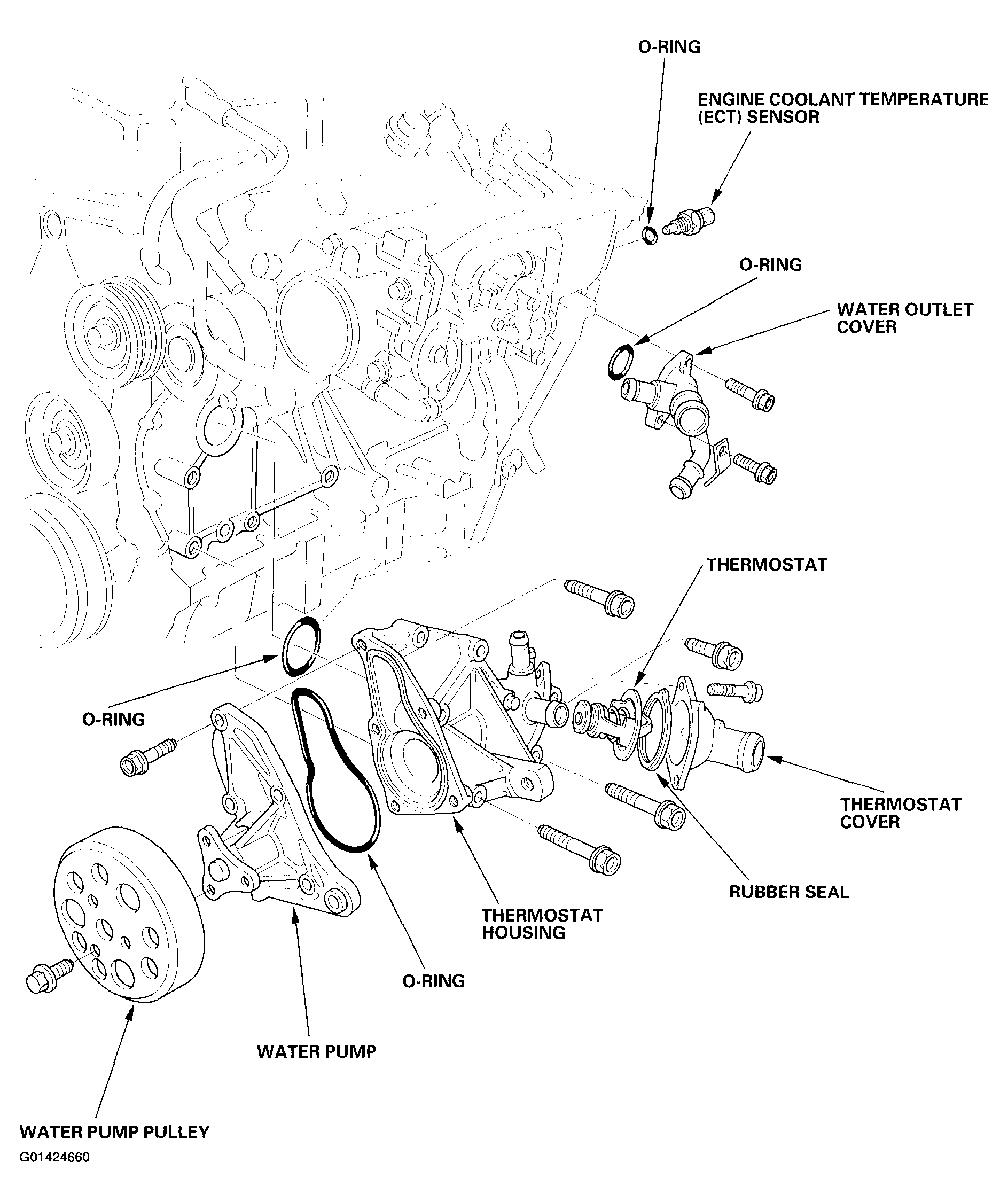

Fig 4: Identifying Cooling System Replacement Components (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
