Radiator Test
- Wait until the engine is cool, then carefully remove the radiator cap and fill the radiator with engine coolant to the top of the filler neck.

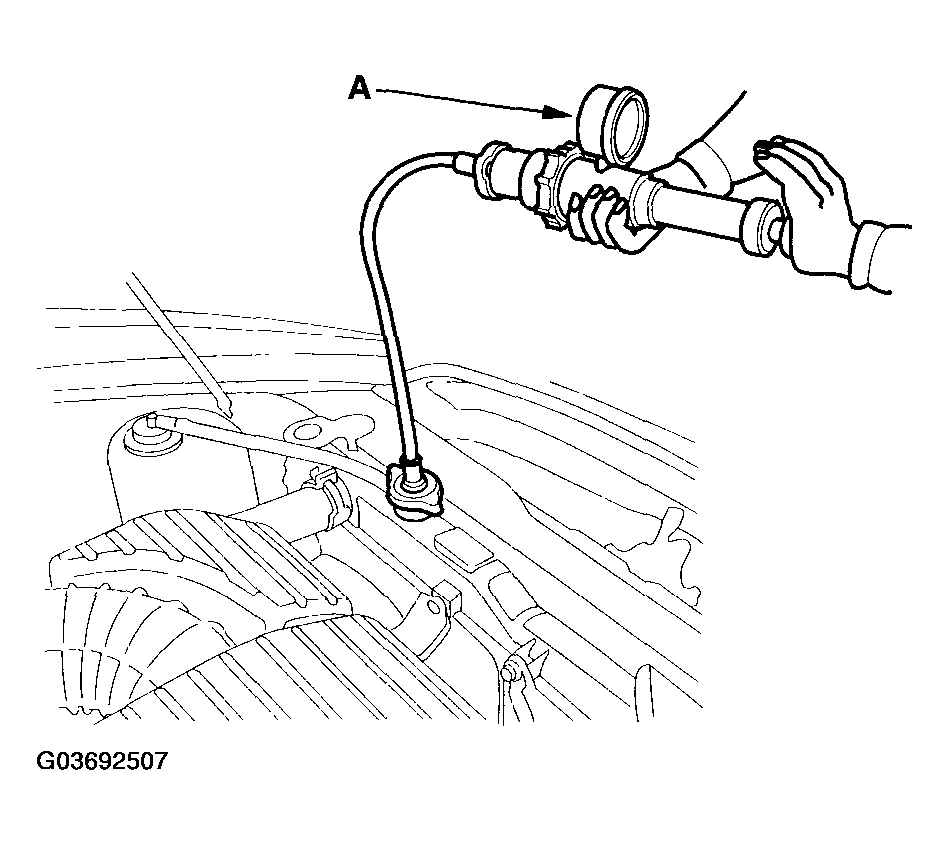

- Attach the commercially available pressure tester (A) to the radiator and apply a pressure of 93-123 kPa (0.95-1.25 kgf/cm2, 14-18 psi).
- Inspect for engine coolant leaks and a drop in pressure.
- Remove the tester and reinstall the radiator cap.
