DTC P2101: Throttle Actuator System Malfunction

NOTE: Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information (see GENERAL TROUBLESHOOTING INFORMATION ).
  1. Clear the DTC with the HDS.
  2. Do the ETCS TEST in the INSPECTION MENU with the HDS.
  3. Check for Temporary DTCs or DTCs with the HDS.

    Is DTC P2101 indicated?

    1. YES -  Go to step  6.
    2. NO -  Go to step  4.
  4. Test-drive the vehicle for several minutes in the range of these recorded freeze data parameters:
    • ENGINE SPEED
    • VSS
    • APP SENSOR A
  5. Check for Temporary DTCs or DTCs with the HDS.

    Is DTC P2101 indicated?

    1. YES -  Go to step  7.
    2. NO -  Intermittent failure, system is OK at this time. Check for poor connections or loose terminals at the throttle body and the throttle actuator control module, then clean the throttle body (see THROTTLE BODY CLEANING ).
  6. Turn the ignition switch OFF.
  7. Disconnect the intake air duct from the throttle body.
  8. Turn the ignition switch ON (II).
  9. Clear the DTC with the HDS.
  10. Do the ETCS TEST in the INSPECTION MENU with the HDS.
  11. Visually check the throttle valve operation.
    NOTE: Be careful not to pinch your finger during the check.

    Does the throttle valve operate smoothly?

    1. YES -  Clean the throttle body (see THROTTLE BODY CLEANING ), then go to step  19 and recheck. If DTC P2101 is indicated, then go to step  17.
    2. NO -  Go to step  12.
  12. Turn the ignition switch OFF.
  13. Disconnect the throttle body 6P connector.
  14. Disconnect the throttle actuator control module 16P connector (see THROTTLE ACTUATOR CONTROL MODULE REPLACEMENT  ).
  15. Connect throttle body 6P connector terminals No. 5 and No. 6 with a jumper wire.

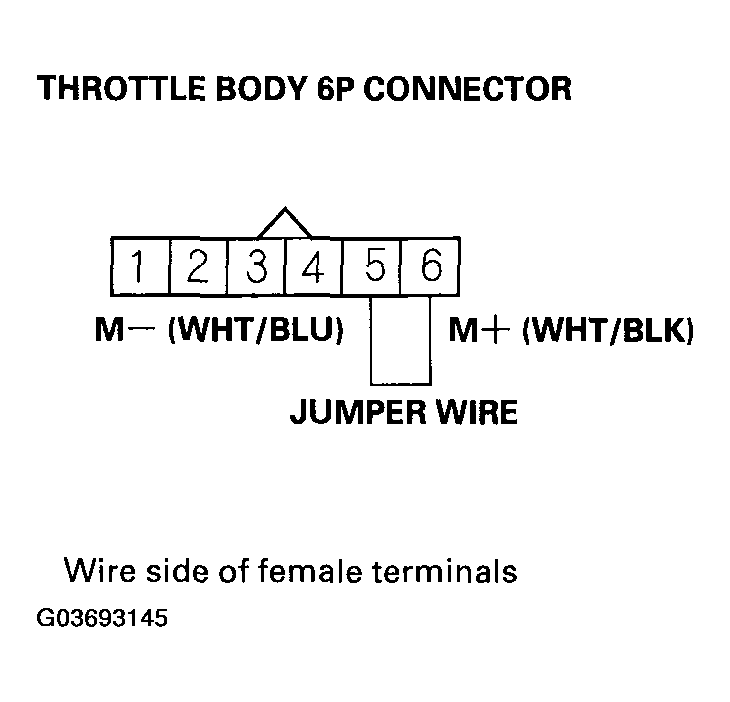

    Fig 1: Connecting Throttle Body 6P Connector Terminals No 5 And No 6 With A Jumper Wire
    G03693145Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Check for continuity between throttle actuator control module 16P connector terminals No. 1 and No. 8.

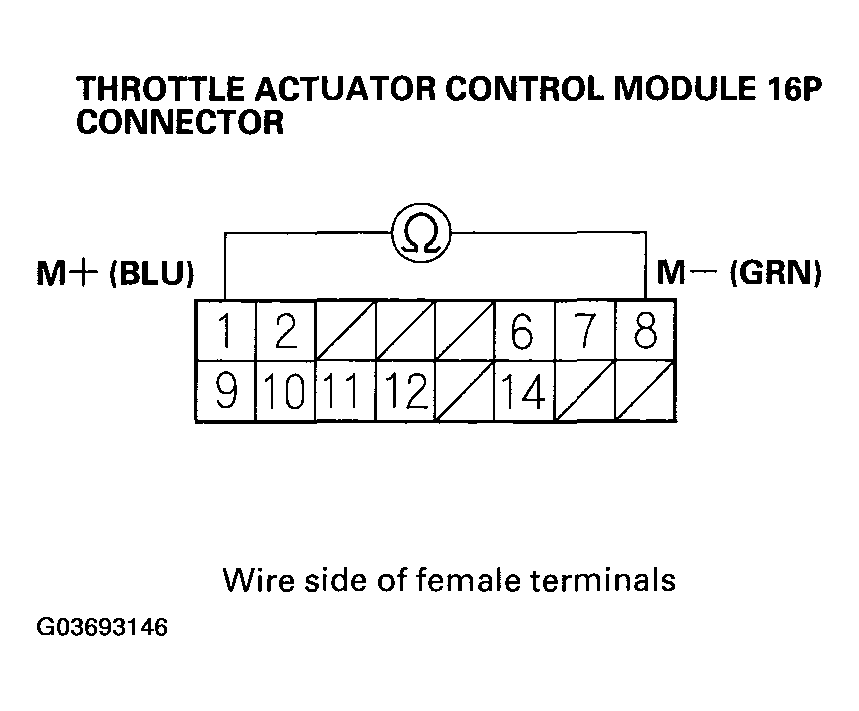

    Fig 2: Checking Continuity Between Throttle Actuator Control Module 16P Connector Terminals No 1 And No 8
    G03693146Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    1. YES -  Substitute a known-good throttle actuator control module (see THROTTLE ACTUATOR CONTROL MODULE REPLACEMENT  ), then go to step  19 and recheck. If DTC P2101 is not indicated, replace the original throttle actuator control module (see THROTTLE ACTUATOR CONTROL MODULE REPLACEMENT  ), then go to step  19. If DTC P2101 is indicated, go to step 17.
    2. NO -  Repair open in the wires between the throttle body and the throttle actuator control module (motor drive lines), then go to step  19.
  17. Turn the ignition switch OFF.
  18. Replace the throttle body (see THROTTLE BODY REMOVAL/INSTALLATION ).
  19. Reconnect all connectors.
  20. Turn the ignition switch ON (II).
  21. Reset the ECM with the HDS.
  22. Do the ECM idle learn procedure (see ECM IDLE LEARN PROCEDURE ).
  23. Test-drive the vehicle for several minutes in the range of these recorded freeze data parameters:
    • ENGINE SPEED
    • VSS
    • APP SENSOR A
  24. Check for Temporary DTCs or DTCs with the HDS.

    Are any Temporary DTCs or DTCs indicated?

    1. YES -  If DTC P2101 is indicated, check for poor connections or loose terminals at the throttle body and the throttle actuator control module, clean the throttle body (see THROTTLE BODY CLEANING ), then go to step  1. If any other Temporary DTCs or DTCs are indicated, go to the indicated DTC's troubleshooting.
    2. NO -  Troubleshooting is complete.
