Air Pump Electrical Current Sensor Connector End View

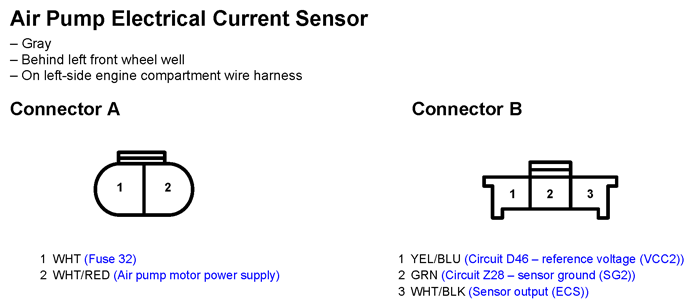

Fig 1: Air Pump Electrical Current Sensor Connector End View
G11250197Courtesy of AMERICAN HONDA MOTOR CO., INC.
