Back-up Light Switch Connector End View

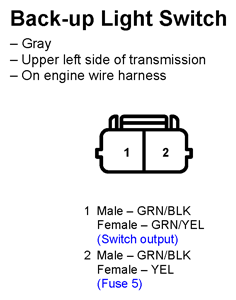

Fig 1: Back-up Light Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
