Back-up Light Switch Test

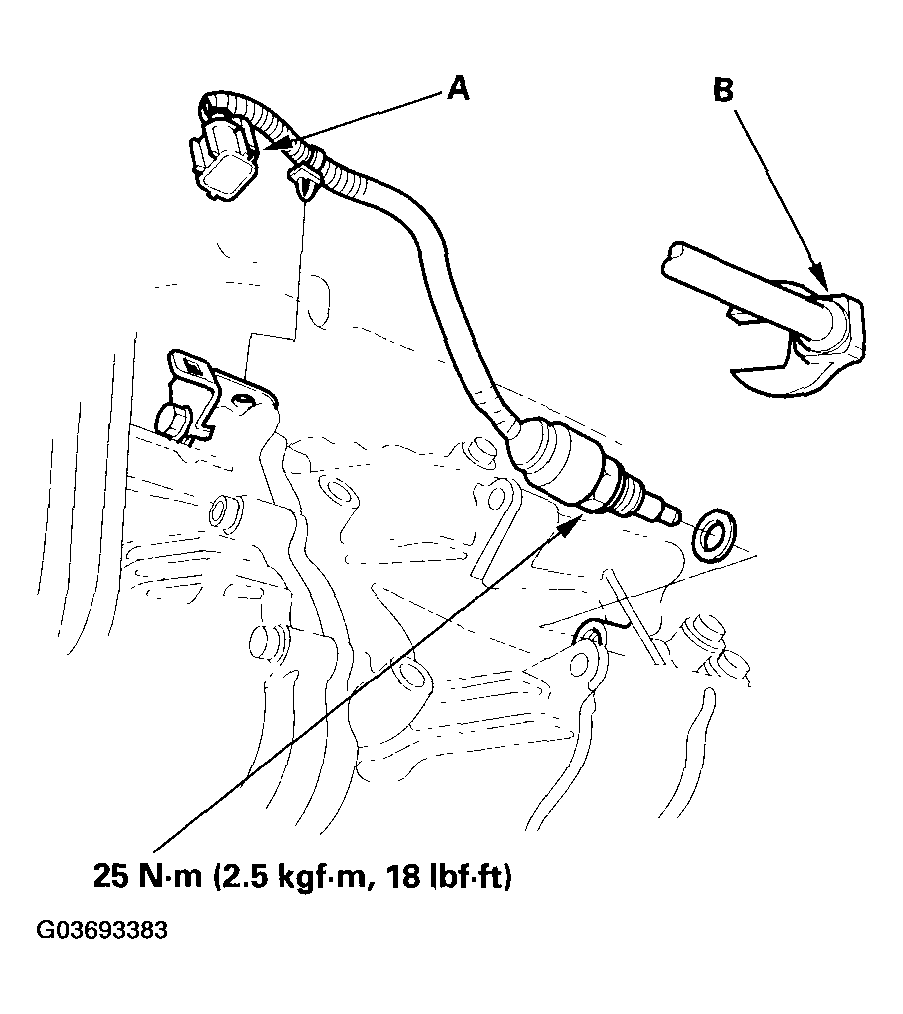

- Disconnect the back-up light switch (A) 2P connector.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Check for the continuity between the terminals of the back-up light switch 2P connector. There should be continuity when the shift lever is in into reverse.
- If necessary, replace the switch.
- Remove the shift lever knob, boot holder, shift boot, shift lever, and shift lever spring (see EXPLODED VIEW-REAR COVER
).
- Remove the three way catalytic converter (TWO (see step 28
).
- Remove the propeller shaft (see
PROPELLER SHAFT REMOVAL
).
- Place the floor jack under the transmission, and remove the three transmission rear mount bolts (see step 39
).
- Lower the transmission rear end 65 mm (2.56 in.), then remove the back-up light switch using a 3/8" crow foot wrench (19 mm) (B).
