Gearshift Mechanism Replacement

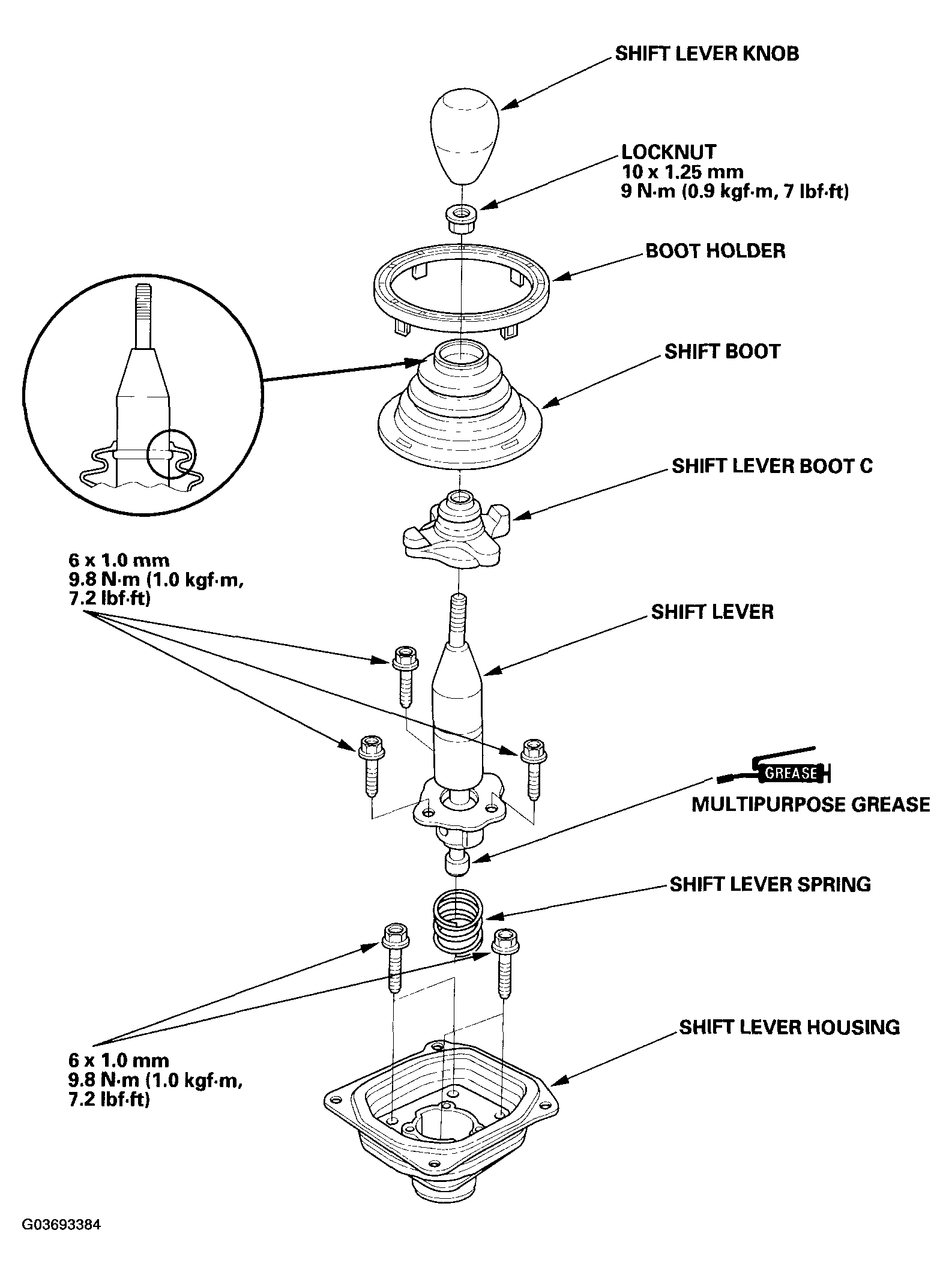

Fig 1: Exploded View Of Gearshift Mechanism With Torque Specifications
G03693384Courtesy of AMERICAN HONDA MOTOR CO., INC.
