Shift Arm Rod Assembly Disassembly/Reassembly

Remove the select return spring (B).

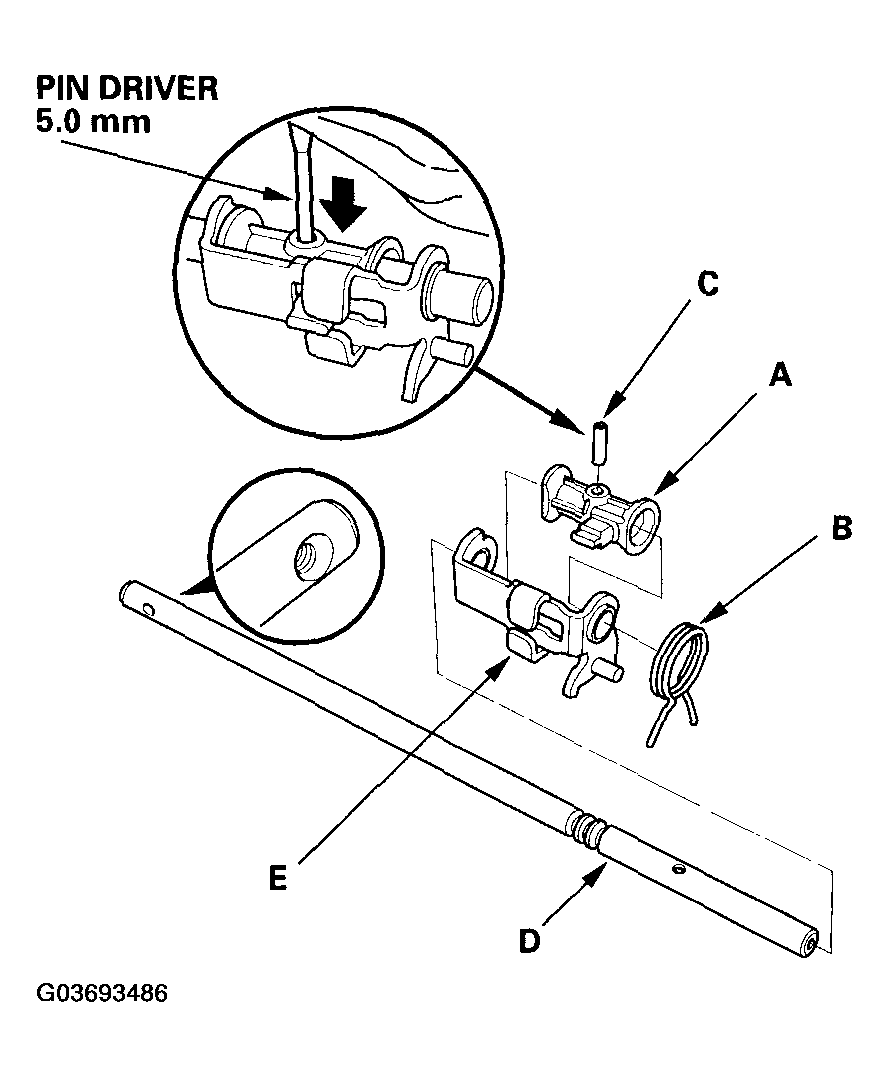

Fig 1: Removing Shift Rod
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the 5 x 25 spring pin (C) from shift arm A with a 5 mm pin driver, then remove the shift rod (D).
Remove shift arm A from the interlock (E).
Clean all the parts in solvent, dry them, and apply lubricate to any contact surfaces.
Install shift arm A to the interlock.
Install the shift rod and the new 5 x 25 spring pin.
Install the select return spring.
