Exploded View-Transmission Housing

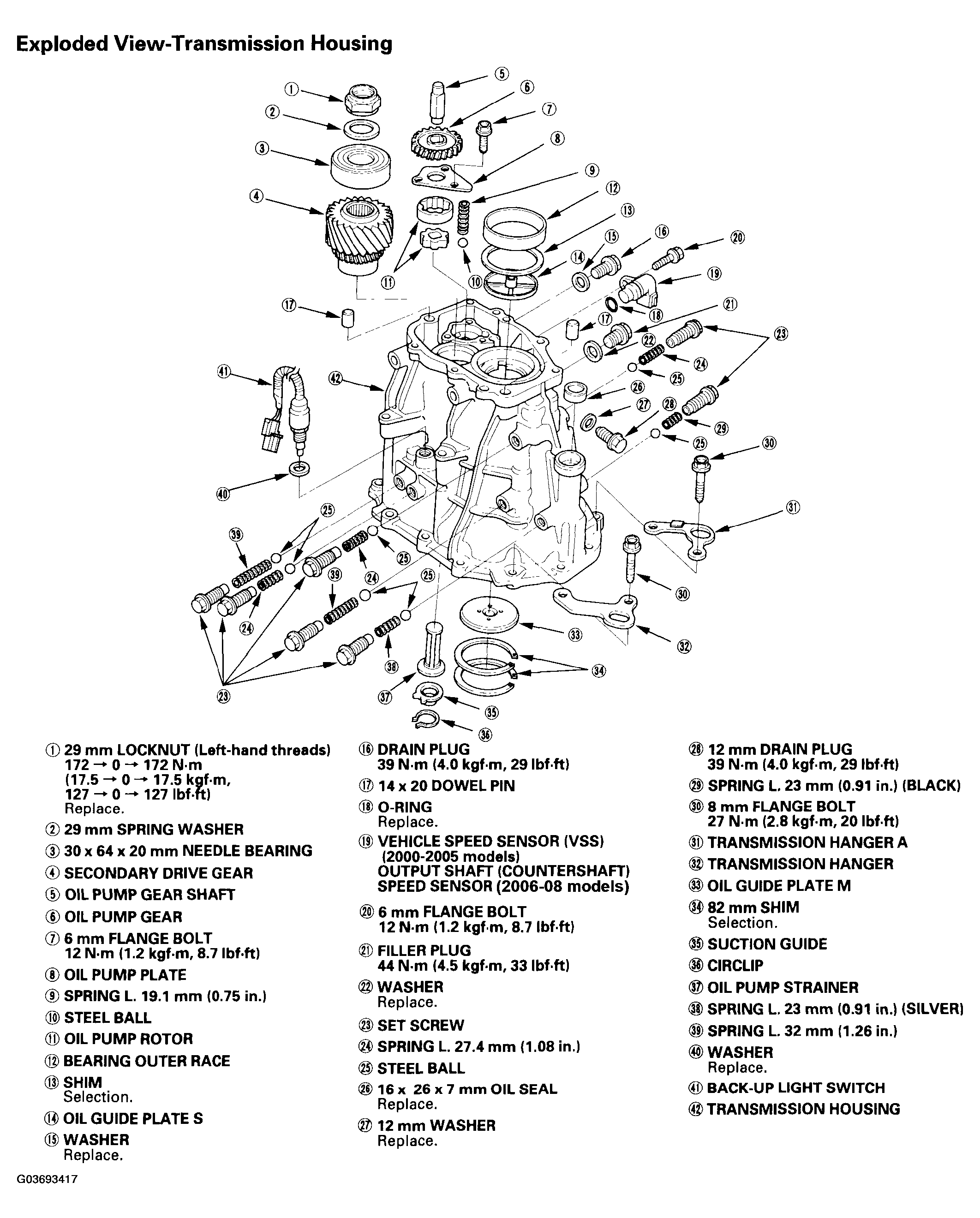

Fig 1: Exploded View-Transmission Housing With Torque Specifications
G03693417Courtesy of AMERICAN HONDA MOTOR CO., INC.
