View 190 XM Receiver Connector View (USA: Base, CR Audio - A/C)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

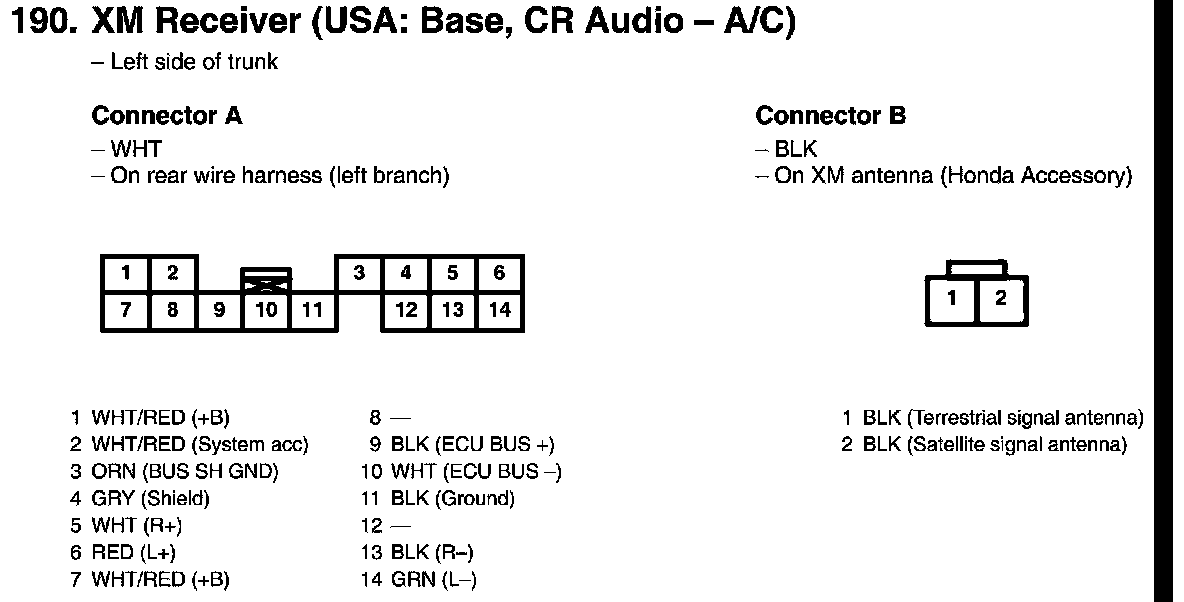

View 190 XM Receiver Connector View (USA: Base, CR Audio - A/C)
