Ambient Temperature Sensor / Switch HVAC: Service and Repair

Outside Air Temperature Sensor Replacement

'06-09 models

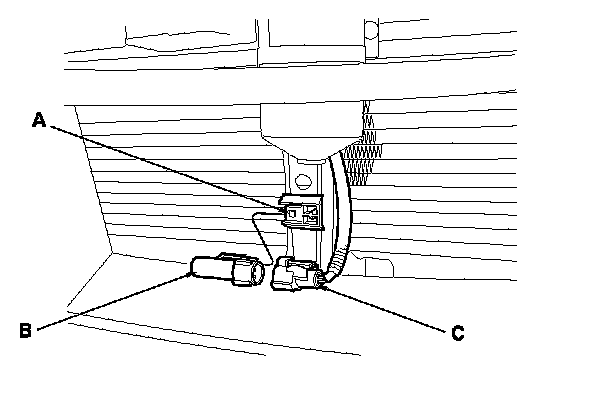

1. Lift the tab (A) to release the lock, then remove the outside air temperature sensor (B) from the sensor clip. Disconnect the 2P connector (C) from the outside air temperature sensor.

2. Install the outside air temperature sensor in the reverse order of removal.
