Air Cleaner Housing: Service and Repair

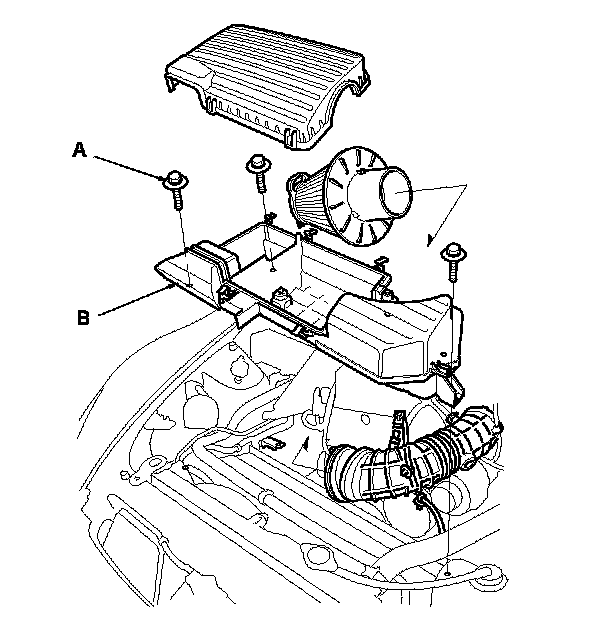

Air Cleaner Removal/Installation

1. Remove the air cleaner element. Testing and Inspection

2. Remove the bolts (A).

3. Remove the air cleaner (B).

4. Install the parts in the reverse order of removal.
