Variable Valve Timing Pressure Switch: Service and Repair

Rocker Arm Oil Pressure Switch (VTEC Oil Pressure Switch) Removal/Installation

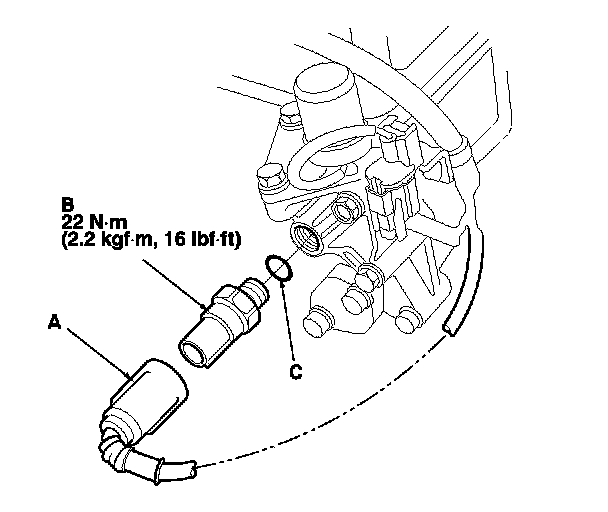

1. Disconnect the rocker arm oil pressure switch (VTEC oil pressure switch) 2P connector (A).

2. Remove the rocker arm oil pressure switch (VTEC oil pressure switch) (B).

3. Install the parts in the reverse order of removal with a new O-ring (C).
