Honda
>>
2009
>>
S2000 L4-2.2L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Main Under-hood Fuse/Relay Box - Connector-to-Fuse/Relay Box Index
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

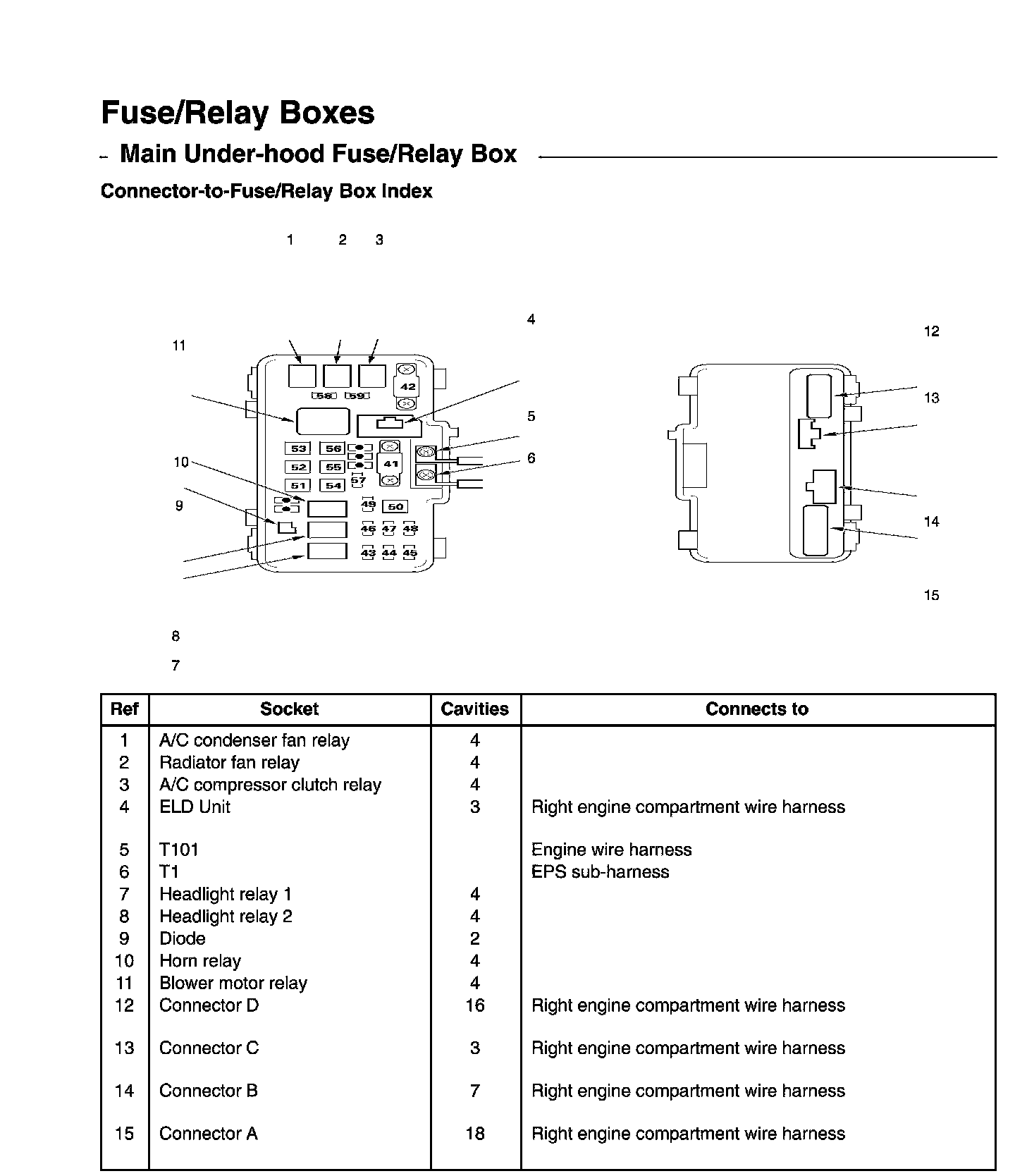

Main Under-hood Fuse/Relay Box - Connector-to-Fuse/Relay Box Index
