Differential Mount: Service and Repair

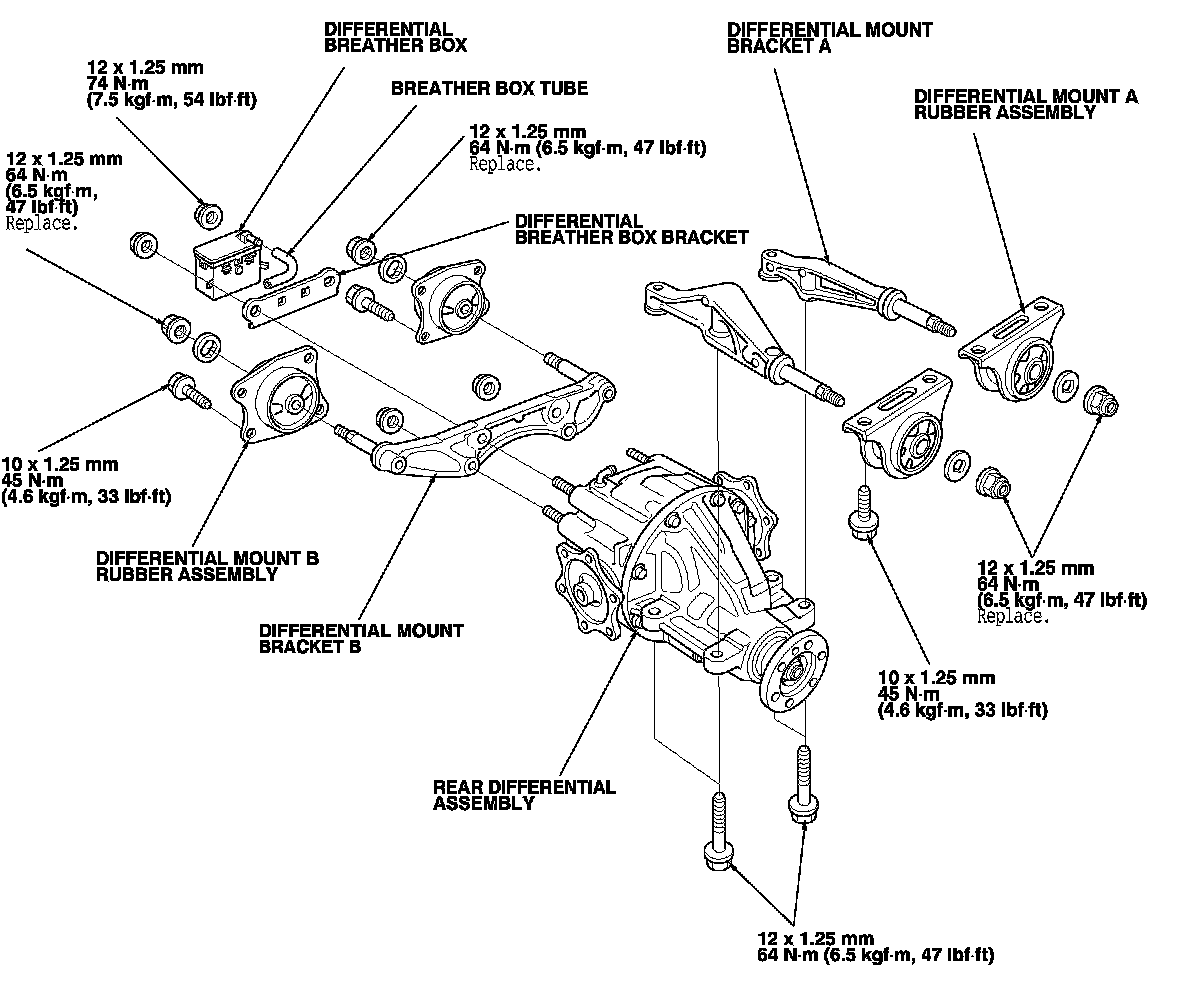

Rear Differential Mount Replacement

NOTE: If installing the rear differential and mount assemblies, tighten the differential mount bracket B mounting nuts first, then tighten the differential mount bracket A mounting bolts.

'06-09 models
