Passengers Power Window Motor Test

Passenger's Power Window Motor Test

1. Remove the passenger's door panel. Service and Repair

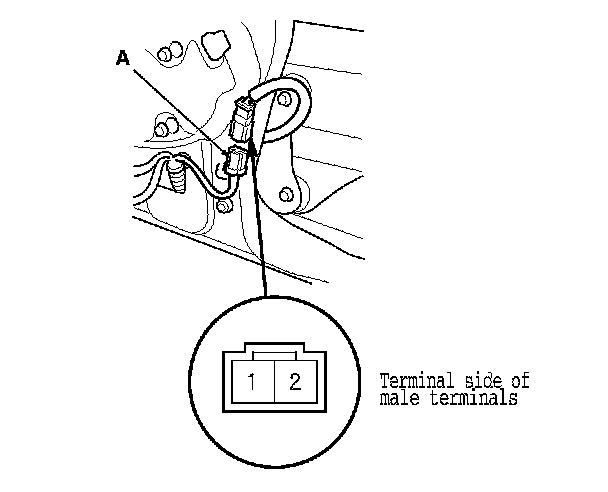

2. Disconnect the 2P connector (A) from the passenger's power window motor.

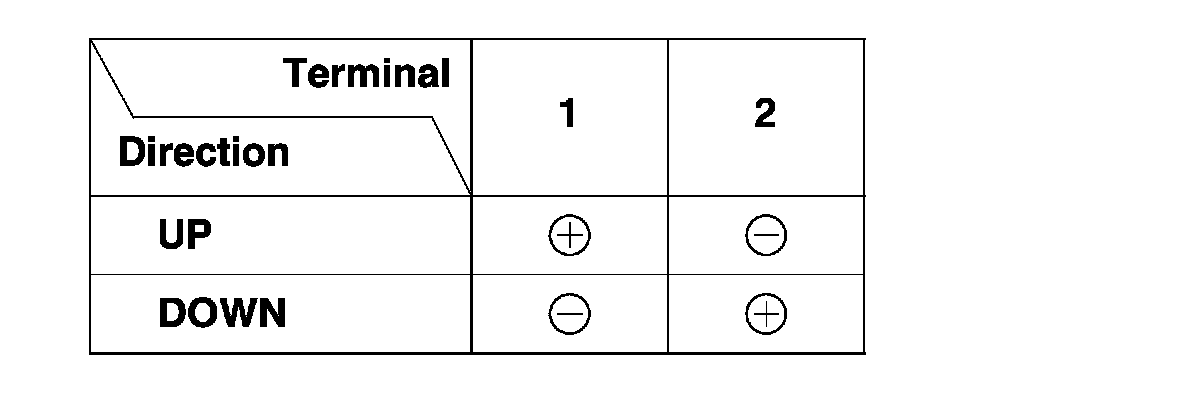

3. Check window motor operation by connecting power and ground according to the table. When the motor stops running, disconnect one lead immediately.

4. If the motor does not run or fails to run smoothly, replace it.
