Window Track: Adjustments

Door Sash Holder Adjustment

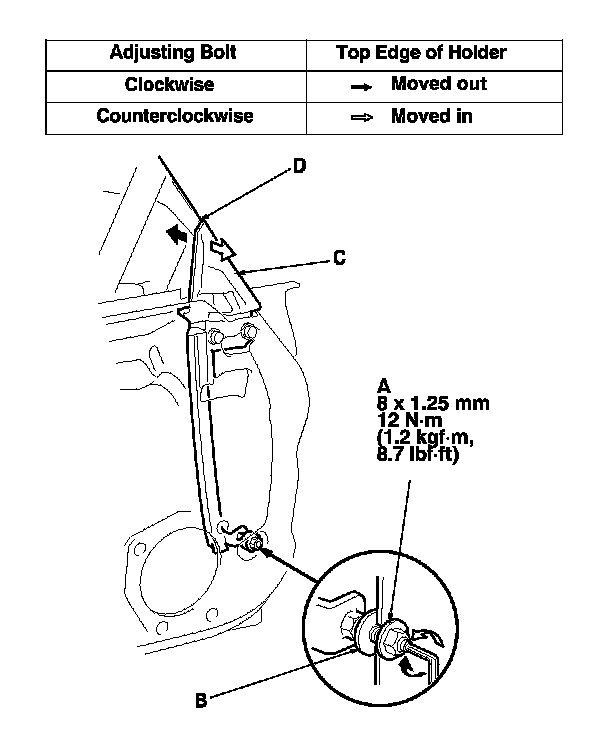

1. Raise the glass fully.

2. Remove the door panel. Service and Repair

3. Loosen the locknut (A) while holding the adjusting bolt (B) with a hex wrench.

4. Align the door sash holder (C) with the glass using the adjusting bolt at the bottom of the holder. Make sure that there is no clearance between the end of the channel (D) and the glass surface.

5. Tighten the locknut securely.

6. Reinstall all remaining removed parts.

7. Check for water leaks. Adjustments

8. Test-drive, and check for wind noise and rattles.
