Home
>>
Honda
>>
2010
>>
Accord L4-2.4L
>>
Parts and Labor
>>
Body and Frame
>>
Frame
>>
Subframe
>>
Images
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Images

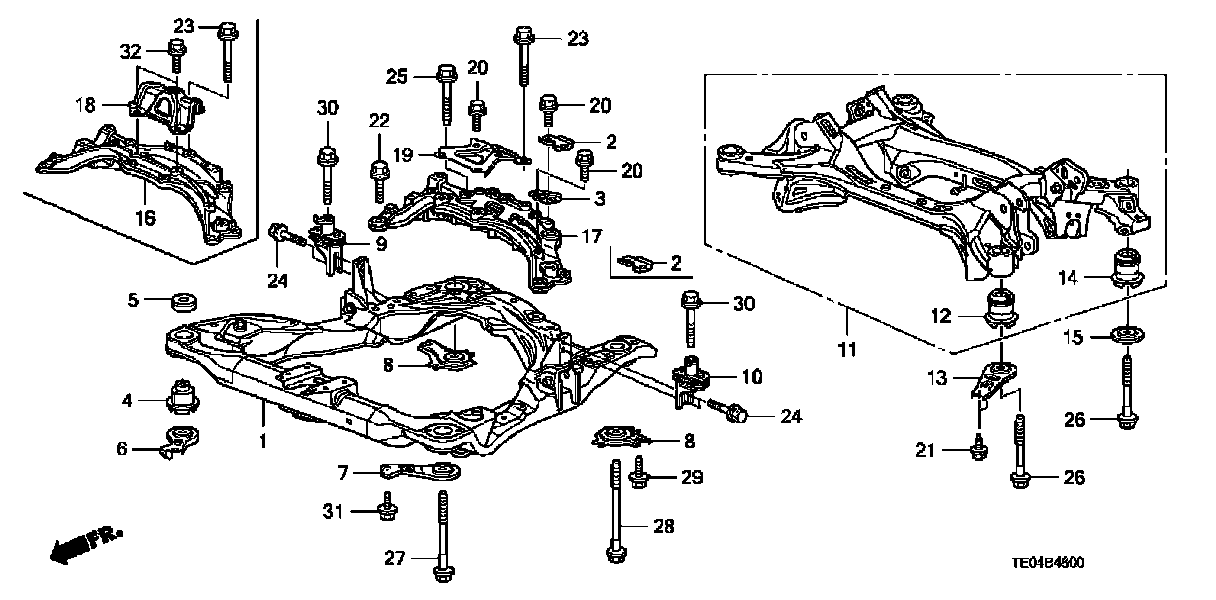

2 Door, Front Sub Frame - Rear Beam:

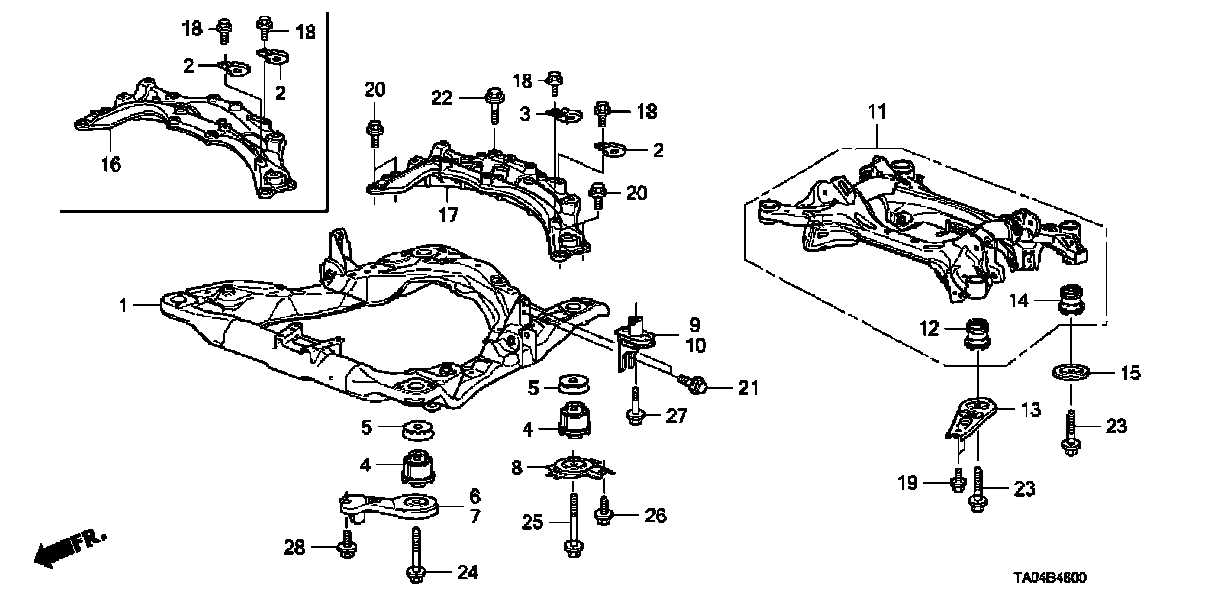

4 Door, Front Sub Frame - Rear Beam:
