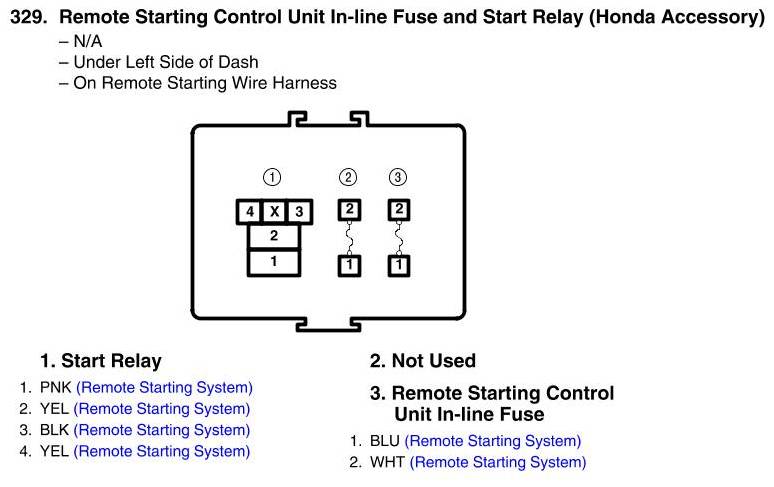

Remote Starting Control Unit In-line Fuse And Start Relay Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Remote Starting Control Unit In-line Fuse And Start Relay Connector View
