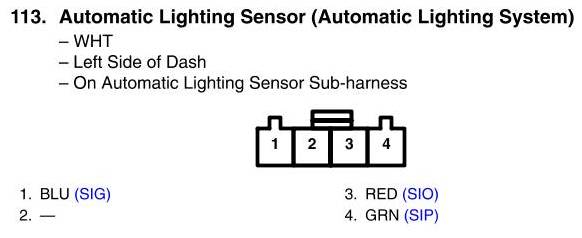

View 113 - Automatic Lighting Sensor Connector View (Automatic Lighting System)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
View 113 - Automatic Lighting Sensor Connector View (Automatic Lighting System)
