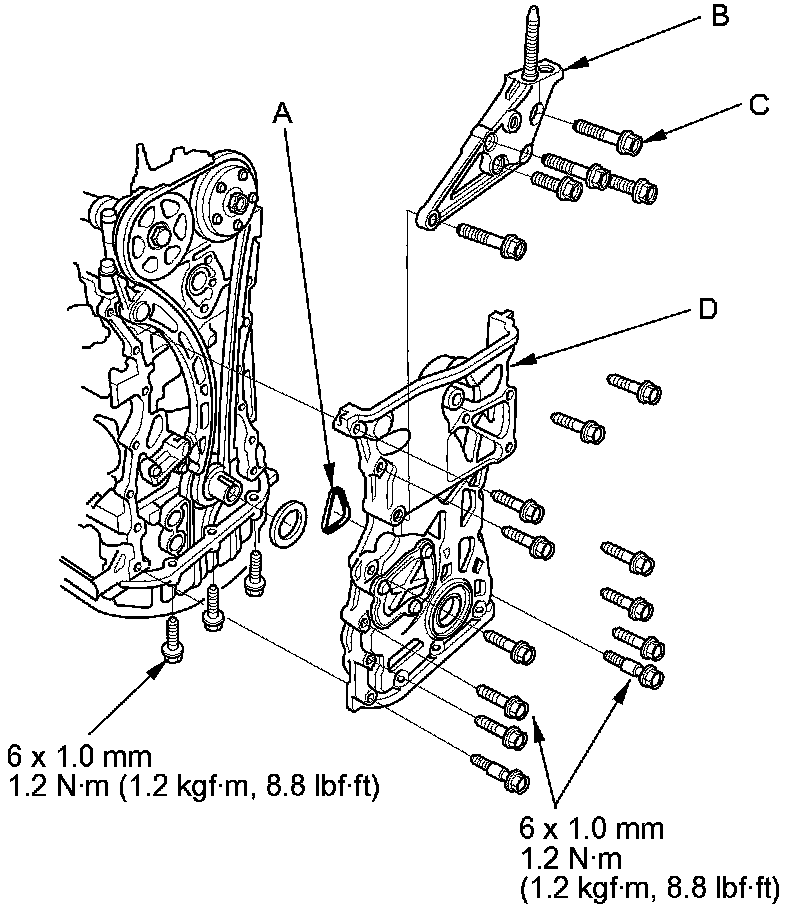

Timing Cover

NOTE:

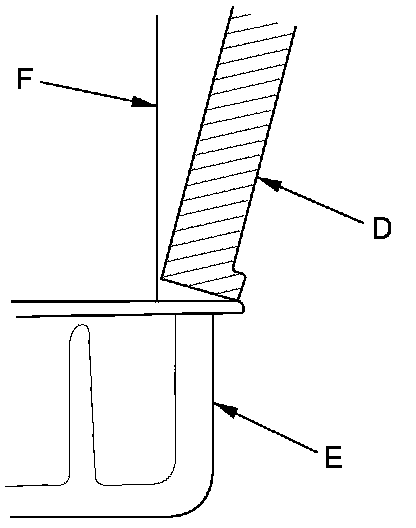

When installing the chain case, do not slide the bottom surface onto the oil pan mounting surface.
Wait at least 30 minutes to allow the liquid gasket to cure before filling the engine with oil.
Do not run the engine for at least 3 hours after installing the chain case.
