DTC P1734: Problem in Shift Control System: Notes

Fig 1: Shift Control System Diagram
G04823297Courtesy of AMERICAN HONDA MOTOR CO., INC.

Hydraulic pressure supply to the clutch by shift solenoid valve output (D position)

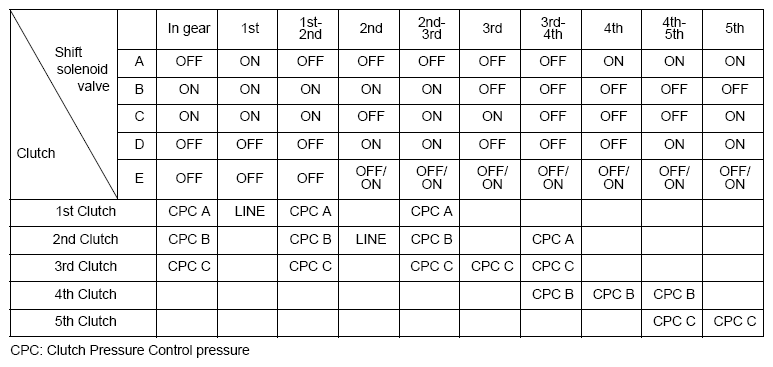

Fig 2: Shift Solenoid Valve And Clutch Position Chart
G06617376Courtesy of AMERICAN HONDA MOTOR CO., INC.
