CKP Sensor Replacement

CKP Sensor Replacement

1. Remove the splash shield; 2-door, Front Splash Shield Replacement 4-door. Front Splash Shield Replacement

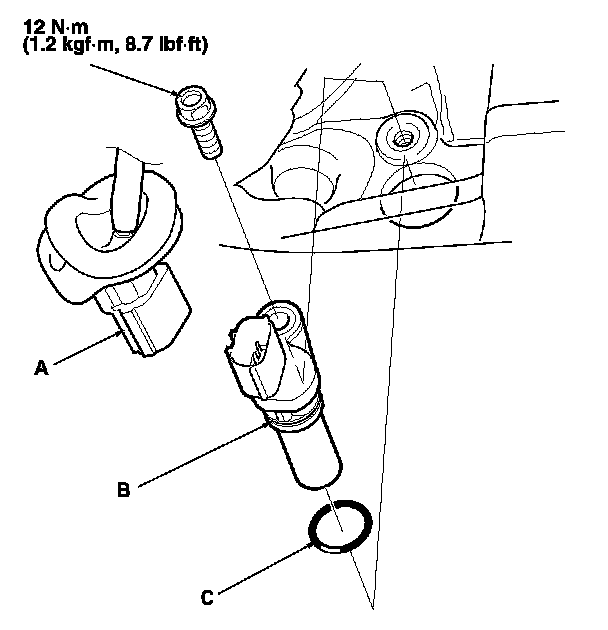

2. Disconnect the CKP sensor 3P connector (A).

3. Remove the CKP sensor (B).

4. Install the parts in the reverse order of removal with a new O-ring (C).

5. Do the CKP pattern clear/CKP pattern learn procedure. Reading and Clearing Diagnostic Trouble Codes
