Intake Manifold

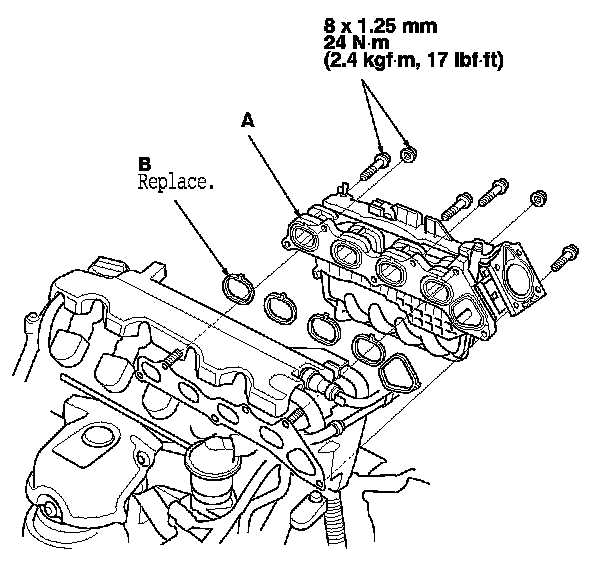

Install the intake manifold (A) with new gaskets (B), and tighten the bolts and nuts in a crisscross pattern in three steps, beginning with the inner bolt.

Raise the vehicle on the lift.

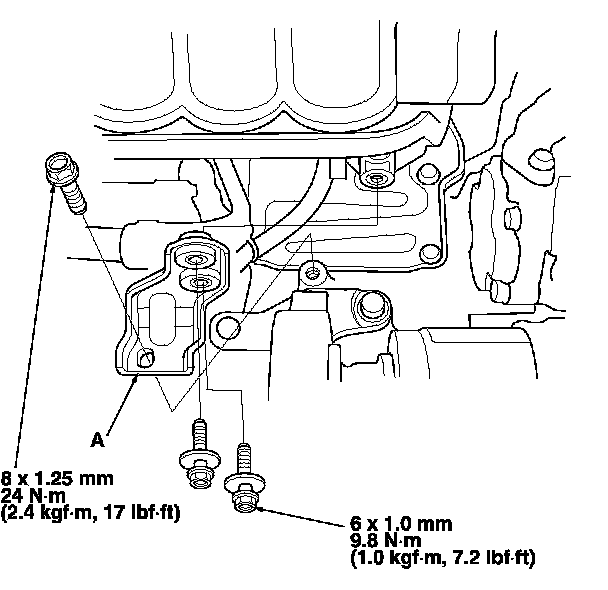

Install the intake manifold bracket (A).

Lower the vehicle on the lift.
