Radiator Hose: Service and Repair

Radiator Connecting Pipe Replacement

1. Drain the engine coolant Service and Repair.

2. Remove the intake manifold.

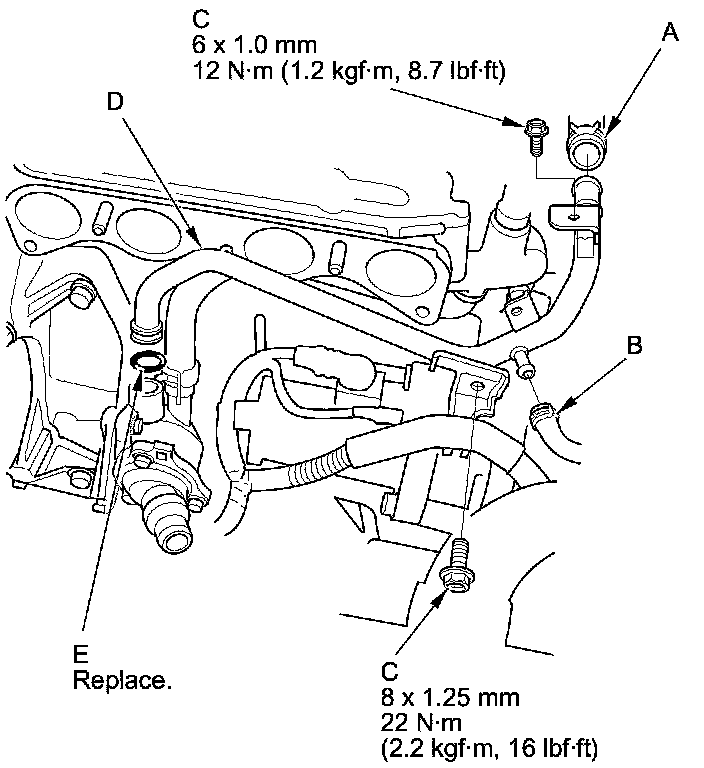

3. Disconnect the heater hose (A) and the water bypass hose (B), then remove the connecting pipe mounting bolts (C), then remove the connecting pipe (D).





4. Install the connecting pipe with a new O-ring (E), then connect the heater hose and the water bypass hose.

5. Install the intake manifold.

6. Refill the radiator with engine coolant, and bleed the air from the cooling system with the heater valve open Service and Repair.

7. Clean up any spilled engine coolant.
