Relay And Control Unit Locations - Dashboard

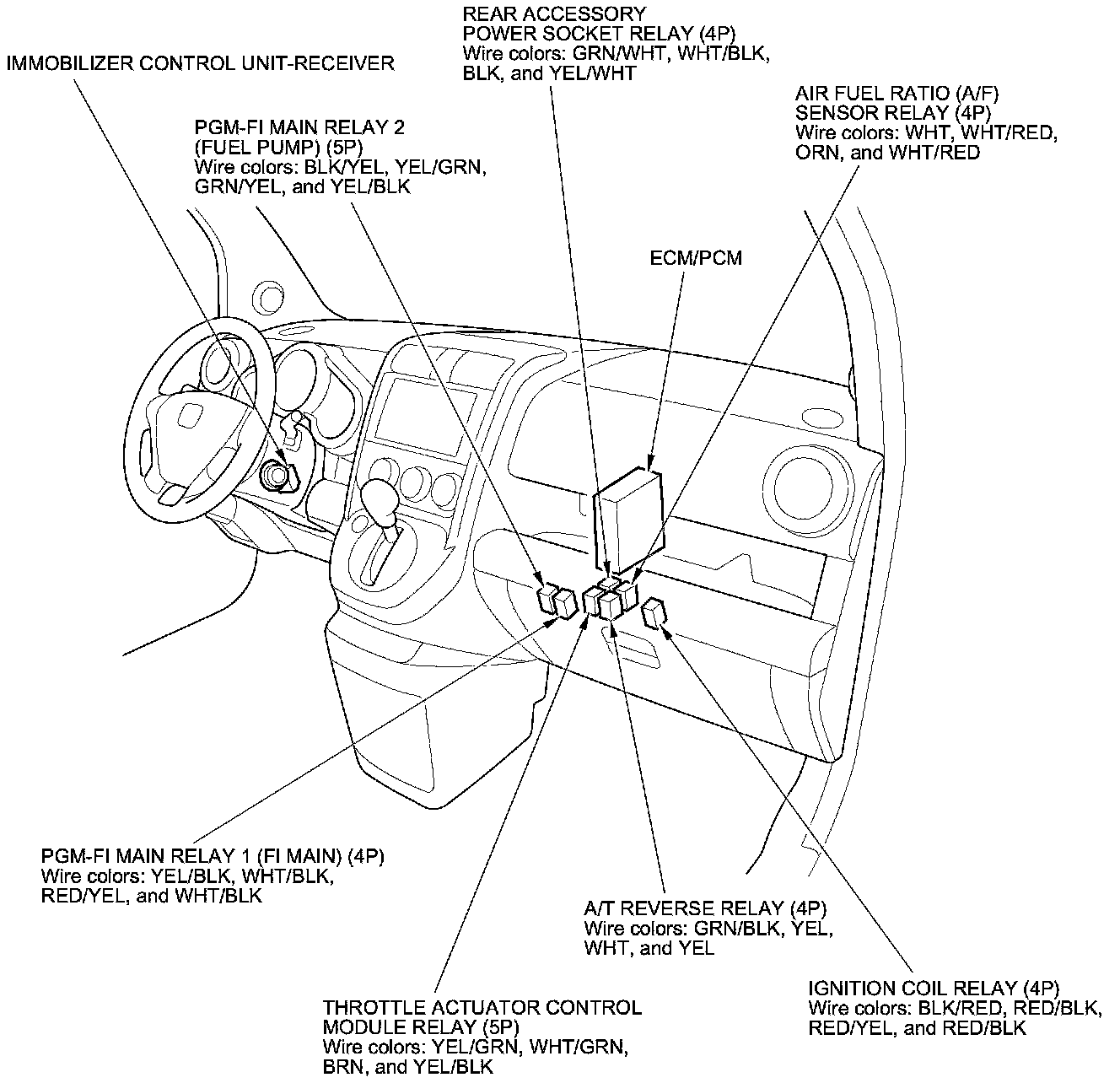

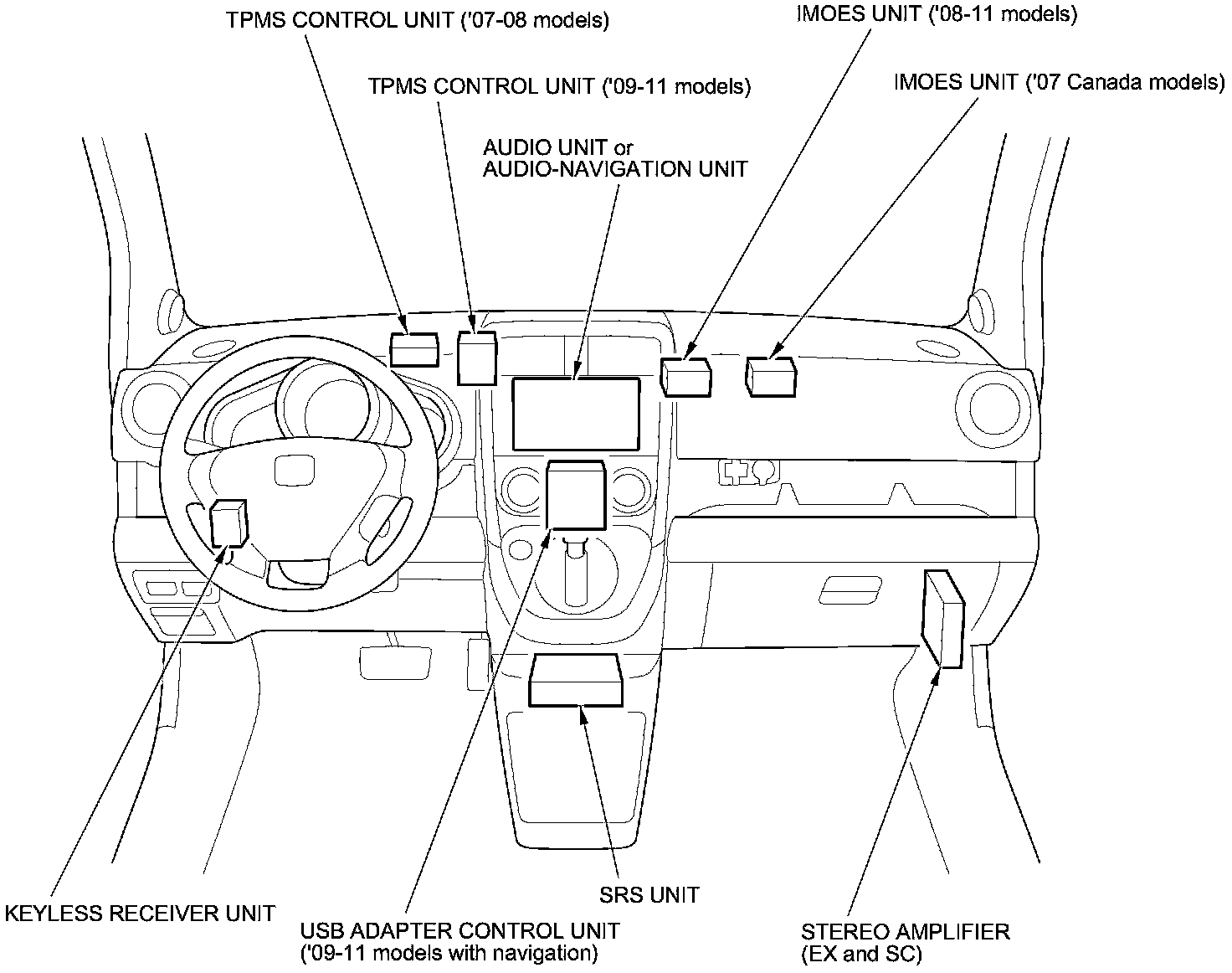

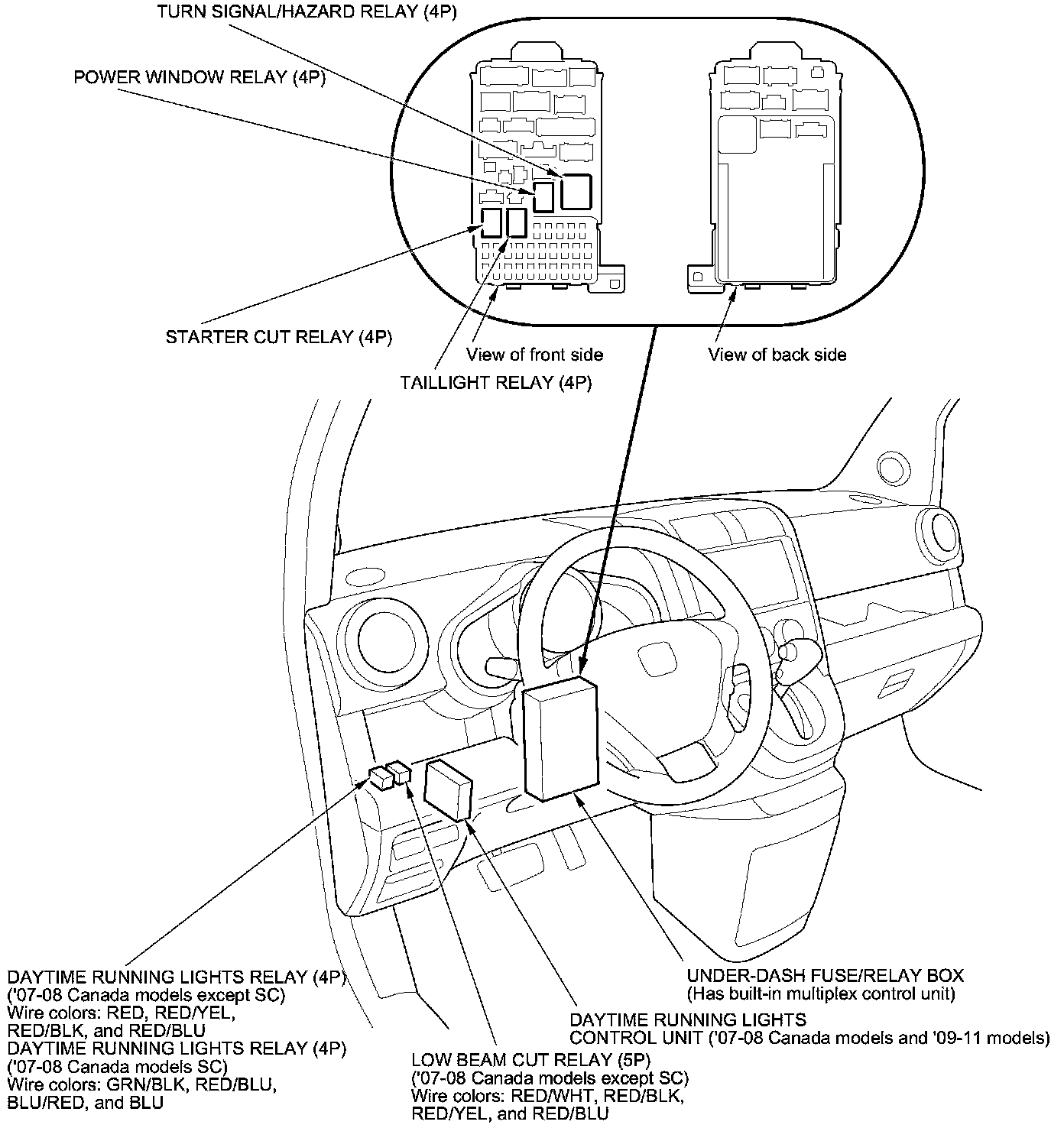

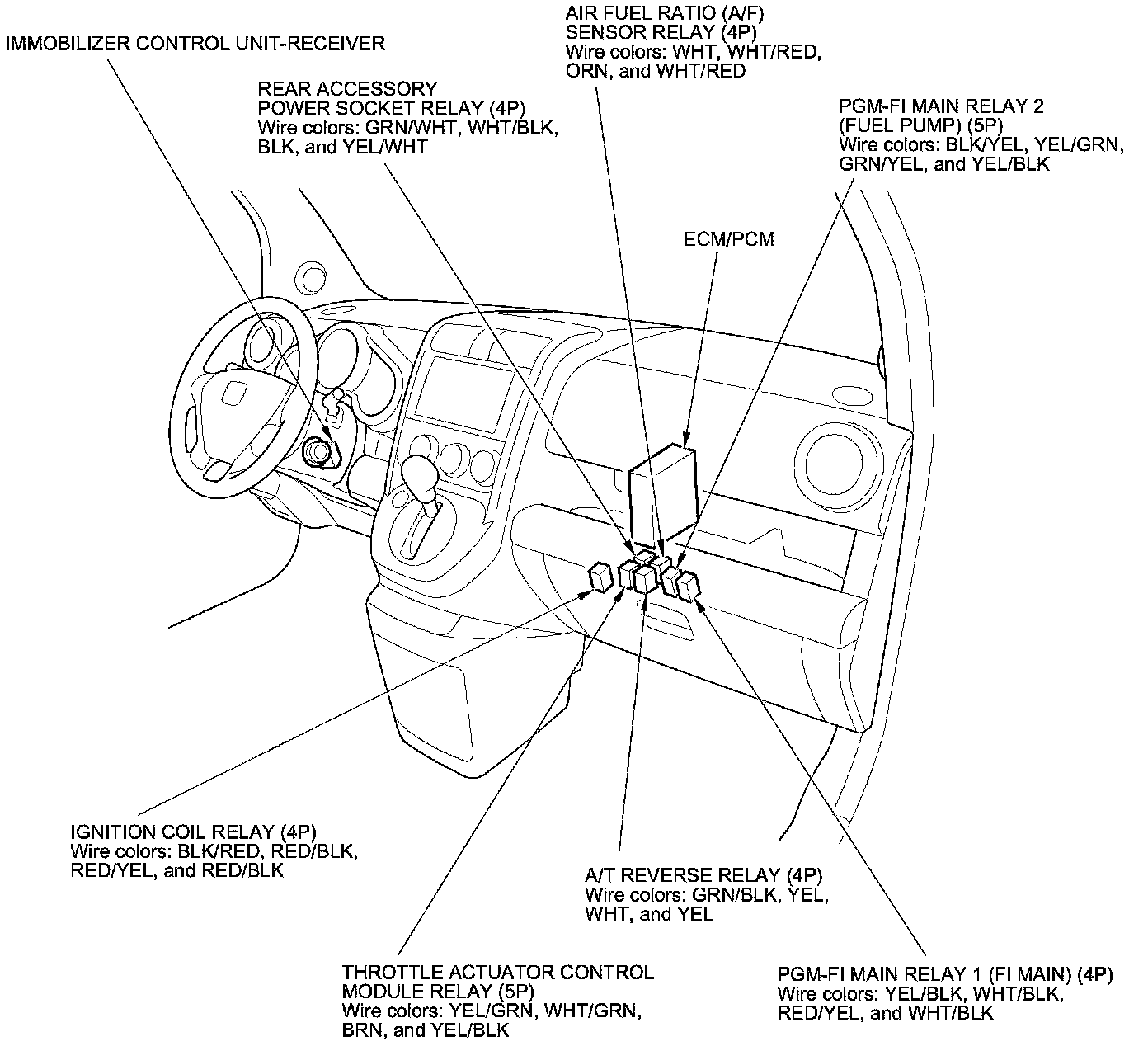

Relay and Control Unit Locations - Dashboard
'07-08 models
'09-11 models
