Catalytic Converter: Service and Repair

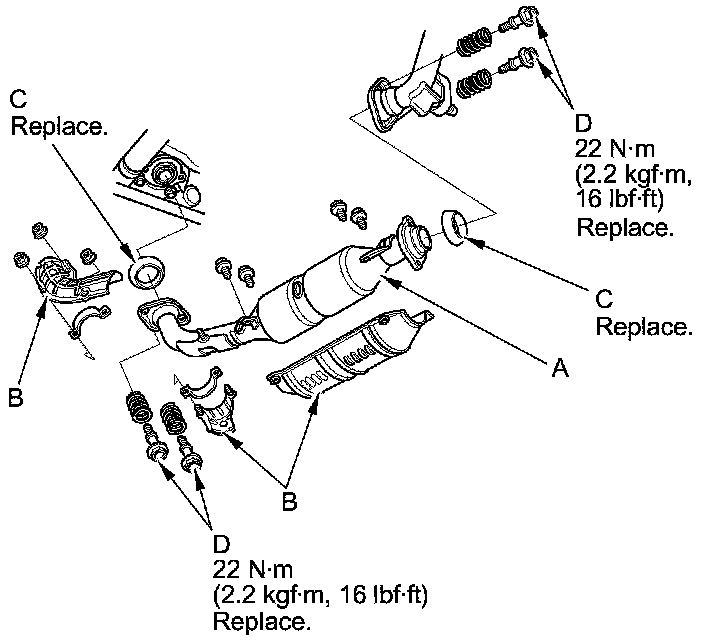

Catalytic Converter Removal/Installation

1. Remove the A/F sensor A/F Sensor Replacement and secondary HO2S Secondary HO2S Replacement.

2. Remove the TWC (A).





3. Remove the converter cover (B).

4. Install the parts in the reverse order of removal with new gaskets (C) and new bolts (D).
