Interior Light Switch (EX, SC) (View 247)

Middle of roof
On roof sub-harness
except Navigation:
- N/A

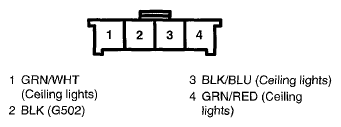

  Fig 1: Interior Light Switch (EX, SC) Connector Terminal - Except Navigation (View 247)
Navigation:
- GRN

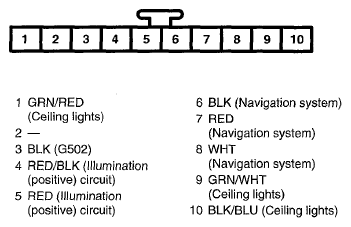

  Fig 2: Interior Light Switch (EX, SC) Connector Terminal - Navigation (View 247)
