Under-dash Fuse/Relay Box (View 253)

Under left side of dash

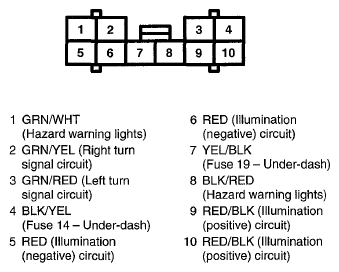

Connector A
- LT GRN
- On dashboard wire harness B

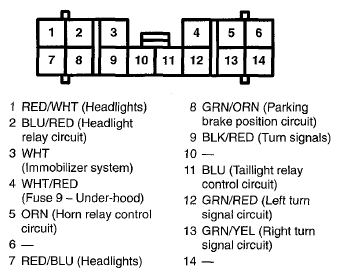

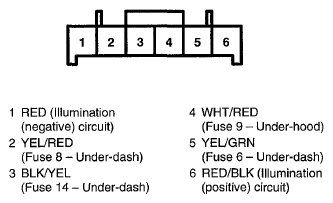

  Fig 1: Under-Dash Fuse/Relay Box Connector Terminal - Connector A (View 253)

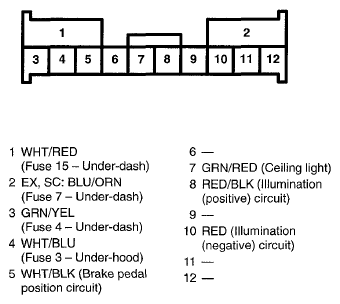

Connector B
- LT GRN
- On dashboard wire harness B

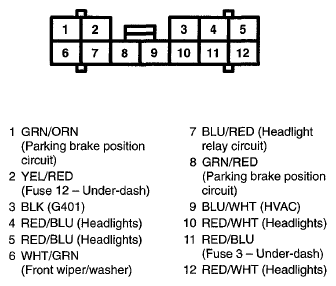

  Fig 2: Under-Dash Fuse/Relay Box Connector Terminal - Connector B (View 253)

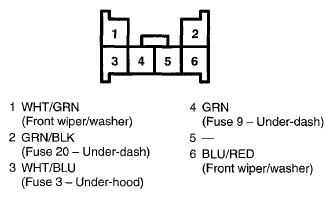

Connector C
- LT GRN
- On dashboard wire harness B

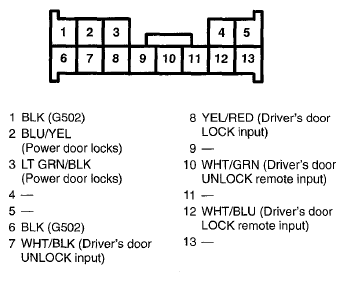

  Fig 3: Under-Dash Fuse/Relay Box Connector Terminal - Connector C (View 253)

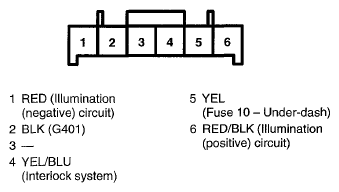

Connector D
- LT GRN
- On ECM/PCM wire harness

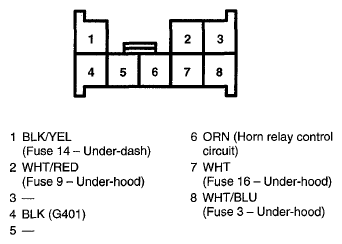

  Fig 4: Under-Dash Fuse/Relay Box Connector Terminal - Connector D (View 253)

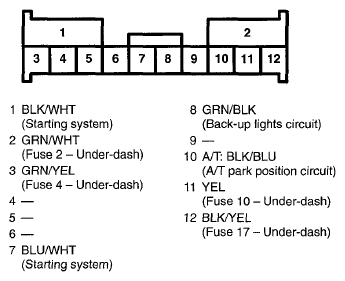

Connector E
- LT GRN
- On ECM/PCM wire harness

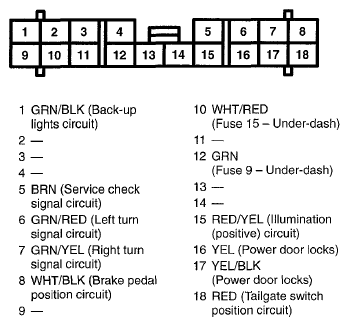

  Fig 5: Under-Dash Fuse/Relay Box Connector Terminal - Connector E (View 253)

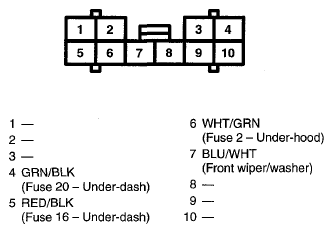

Connector F
- LT GRN
- On dashboard wire harness A (left branch)

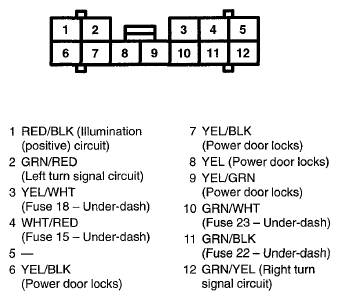

  Fig 6: Under-Dash Fuse/Relay Box Connector Terminal - Connector F (View 253)

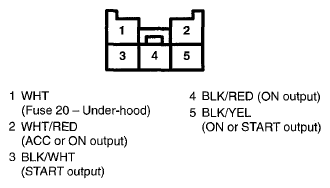

Connector G
- LT GRN
- On ECM/PCM wire harness

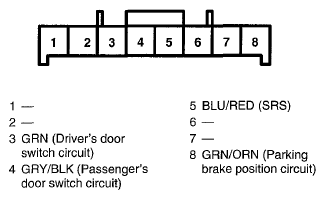

  Fig 7: Under-Dash Fuse/Relay Box Connector Terminal - Connector G (View 253)

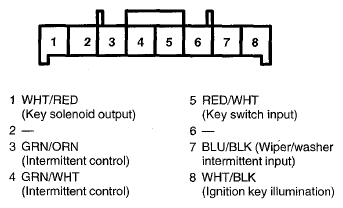

Connector H
- LT GRN
- On ECM/PCM harness

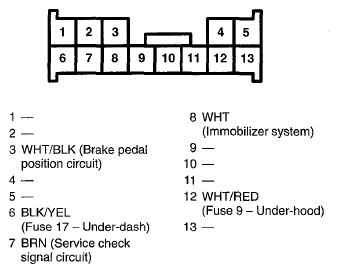

  Fig 8: Under-Dash Fuse/Relay Box Connector Terminal - Connector H (View 253)
Connector J
- LT GRN
- On dashboard wire harness B

  Fig 9: Under-Dash Fuse/Relay Box Connector Terminal - Connector J (View 253)
Connector K
- LT GRN
- On dashboard wire harness A (left branch)

  Fig 10: Under-Dash Fuse/Relay Box Connector Terminal - Connector K (View 253)
Connector L
- LT GRN
- On dashboard wire harness A (left branch)

  Fig 11: Under-Dash Fuse/Relay Box Connector Terminal - Connector L (View 253)
Connector M
- LT GRN
- On dashboard wire harness A (left branch)

  Fig 12: Under-Dash Fuse/Relay Box Connector Terminal - Connector M (View 253)
Connector N
- LT GRN
- On dashboard wire harness A (left branch)

  Fig 13: Under-Dash Fuse/Relay Box Connector Terminal - Connector N (View 253)
Connector O
- LT GRN
- On dashboard wire harness A (left branch)

  Fig 14: Under-Dash Fuse/Relay Box Connector Terminal - Connector O (View 253)
Connector P
- LT GRN
- On ECM/PCM wire harness

  Fig 15: Under-Dash Fuse/Relay Box Connector Terminal - Connector P (View 253)
Connector Q
- LT GRN
- On ECM/PCM wire harness

  Fig 16: Under-Dash Fuse/Relay Box Connector Terminal - Connector Q (View 253)
Connector R (A/T)
- LT GRN
- On ECM/PCM wire harness

  Fig 17: Under-Dash Fuse/Relay Box Connector Terminal - Connector R (View 253)
Connector S
- YEL
- On dashboard wire harness B

  Fig 18: Under-Dash Fuse/Relay Box Connector Terminal - Connector S (View 253)
Connector U (Honda Accessory)
- BRN
- On switch harness (Honda Accessory)

  Fig 19: Under-Dash Fuse/Relay Box Connector Terminal - Connector U (View 253)
Connector X
- LT GRN
- On dashboard wire harness B

  Fig 20: Under-Dash Fuse/Relay Box Connector Terminal - Connector X (View 253)
Connector Y
- LT GRN
- On dashboard wire harness A (left branch)

  Fig 21: Under-Dash Fuse/Relay Box Connector Terminal - Connector Y (View 253)
