Sunlight Sensor Test

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before testing, check for climate control DTCs (see HOW TO CHECK FOR DTCS WITH THE HDS ).

Remove the sunlight sensor (see SUNLIGHT SENSOR REPLACEMENT ).
Connect the sunlight sensor 5P connector.
Turn the ignition switch to ON (II). Measure the voltage between terminals with the (+) probe on terminal No. 2 and the (-) probe on terminal No. 4 with the connector connected.
NOTE: The voltage readings will not change under the light of a flashlight or a fluorescent lamp.

Voltage should be:
- 3.56 V with no sunlight or sensor covered up
- Less than 3.56 V with sunlight on sensor (depending on sunlight intensity)

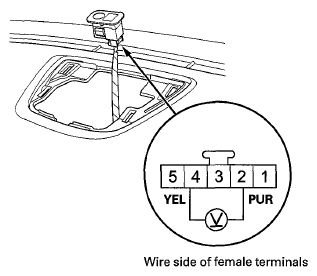

  Fig 1: Identifying Sunlight Sensor Connector Terminals
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the voltage is not as specified, replace the sunlight sensor (see SUNLIGHT SENSOR REPLACEMENT ).
