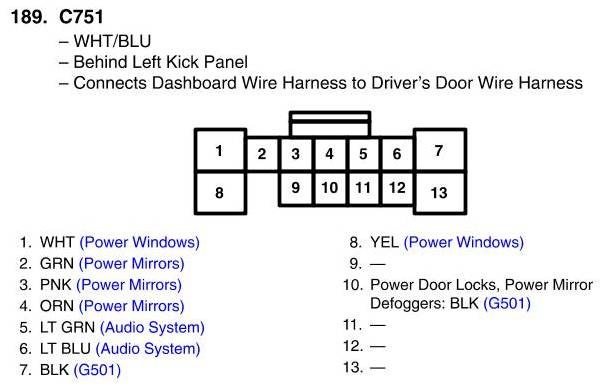

View 189 - C751 Connector View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
View 189 - C751 Connector View
