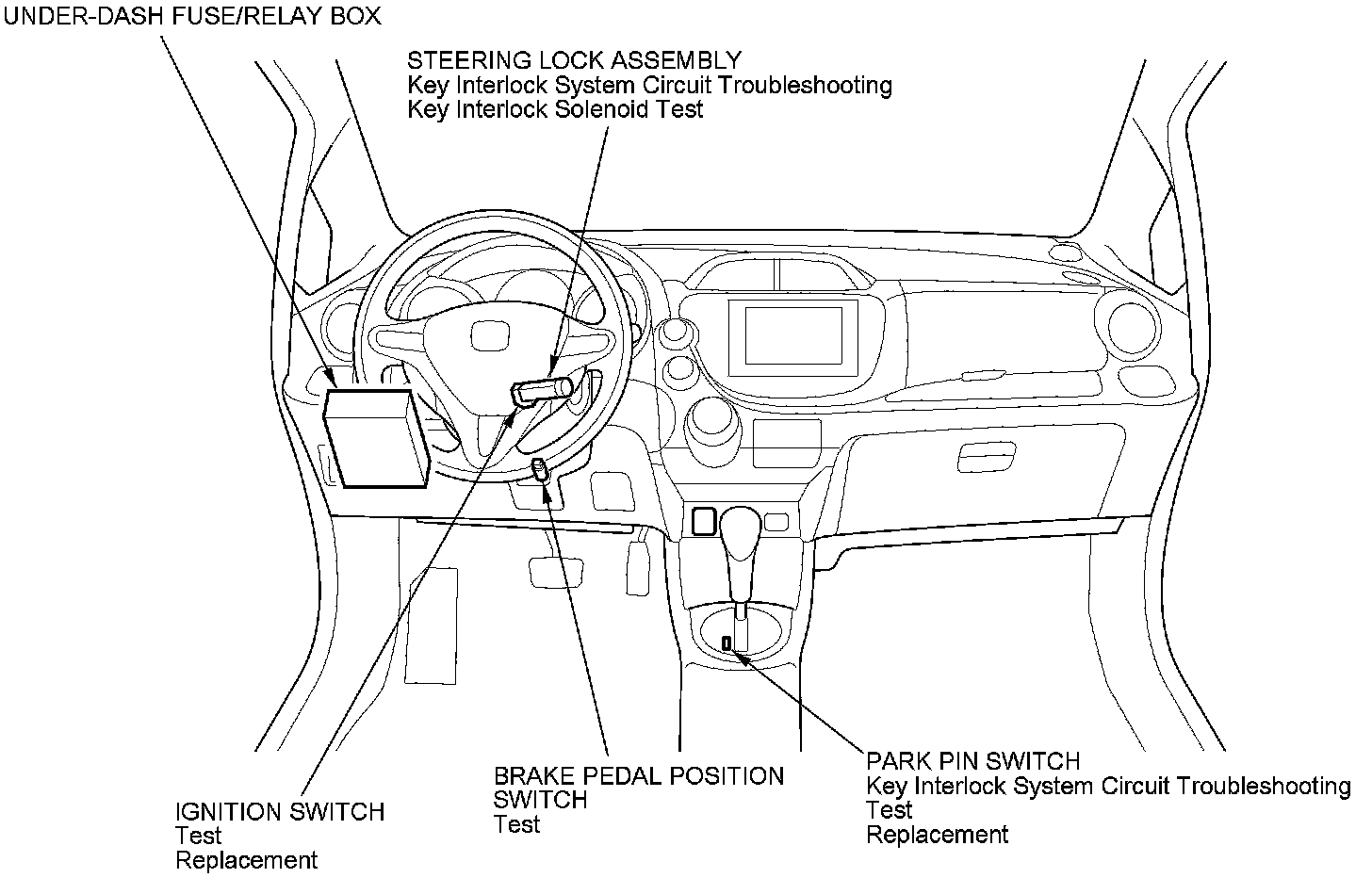

A/T Interlock System - Key Interlock System Component Location Index (A/T)
A/T Interlock System - Key Interlock System Component Location Index
