Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

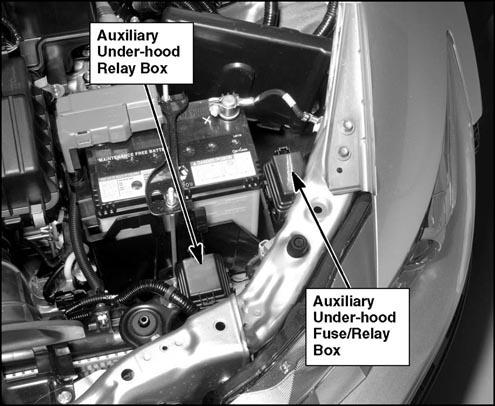

| Auxiliary Under-Hood Fuse/Relay Box |
Left front of engine compartment. See Figure. |
| Auxiliary Under-Hood Relay Box |
Left front of engine compartment. See Figure. |

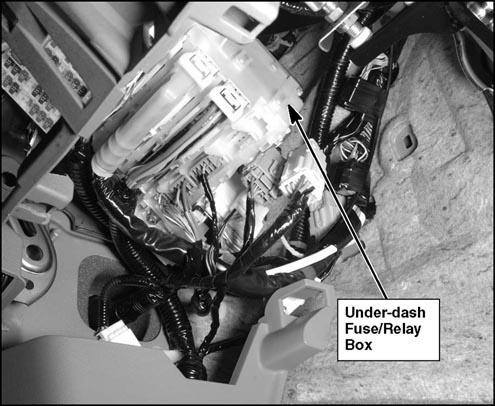

| Under-Dash Fuse/Relay Box |
Under left side of dash. See Figure. |
