Cruise Control Switch: Service and Repair

Cruise Control Combination Switch Test/Replacement

There are SRS components located in this area. Review the SRS component locations Locations, and precautions and procedures Service and Repair, in the SRS before doing repair or service.

1. Remove the driver's airbag Driver's Airbag Replacement.

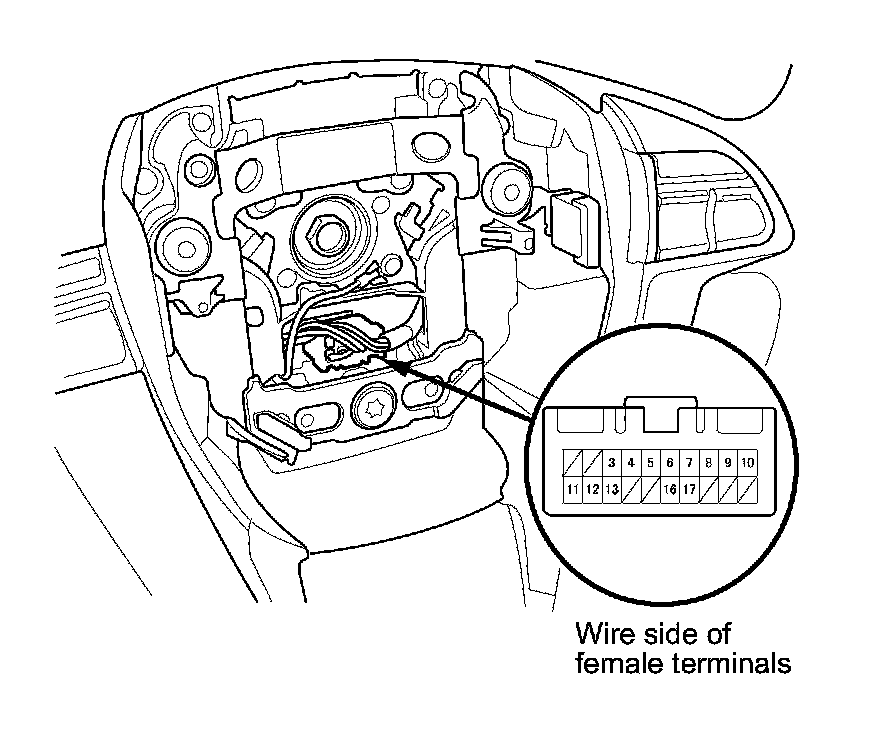

2. Disconnect the cable reel sub harness 20P connector.

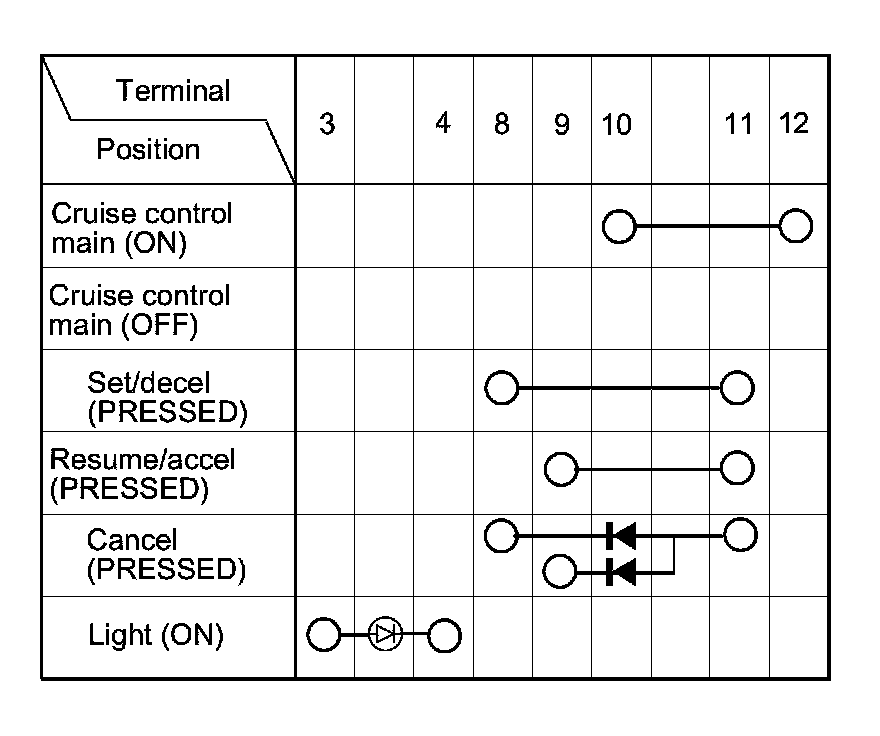

3. Check for continuity between the terminals in each switch position according to the table.

- If there is continuity, and it matches the table, but the cruise control combination switch failure occurred on the cruise control input test Cruise Control (PCM) Input Test, check and repair the wire harness on the switch circuit.
- If there is no continuity in one or both positions, replace the cruise control combination switch.
