Back-up Sensor Control Unit Connector View (Honda Accessory)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

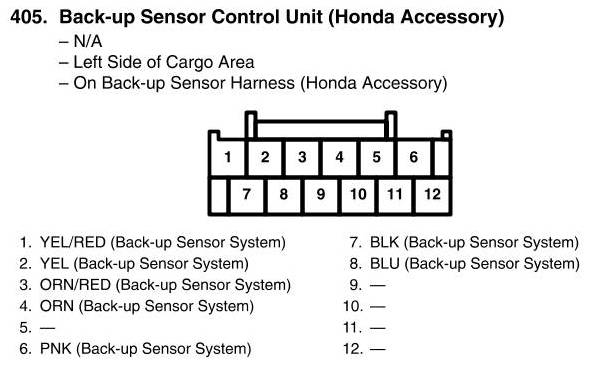

Back-up Sensor Control Unit Connector View (Honda Accessory)
