Home >> Honda >> 2011 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 291 - C401 Connector View

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

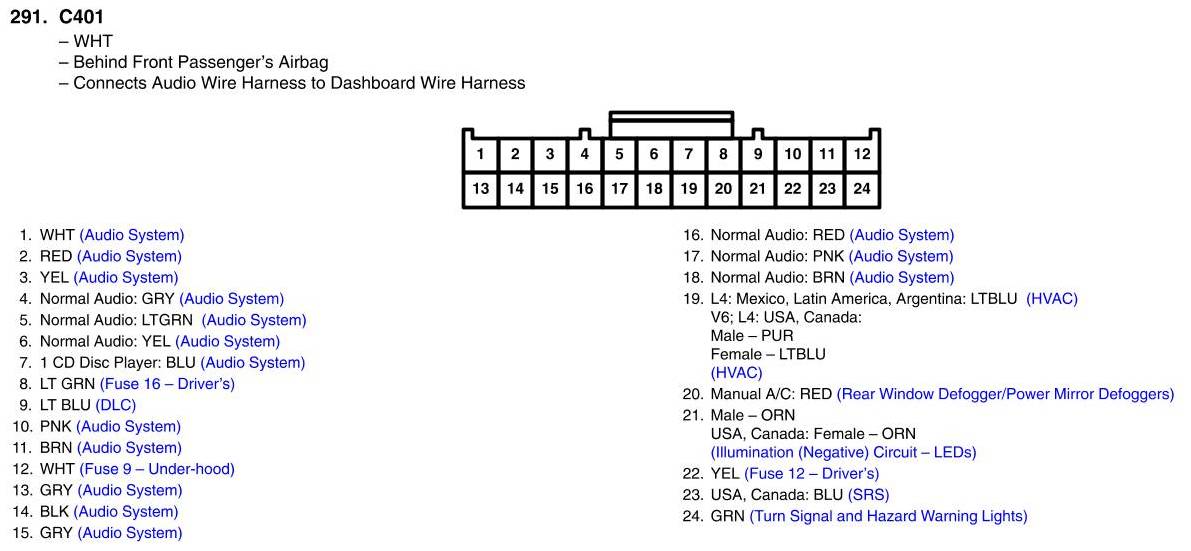

View 291 - C401 Connector View
