CMP Pulse Plate B Replacement (PZEV Models)

CMP Pulse Plate B Replacement

1. Remove the cylinder head cover Cylinder Head Cover Removal (PZEV Models).

2. Remove CMP sensor B CMP Sensor B Replacement.

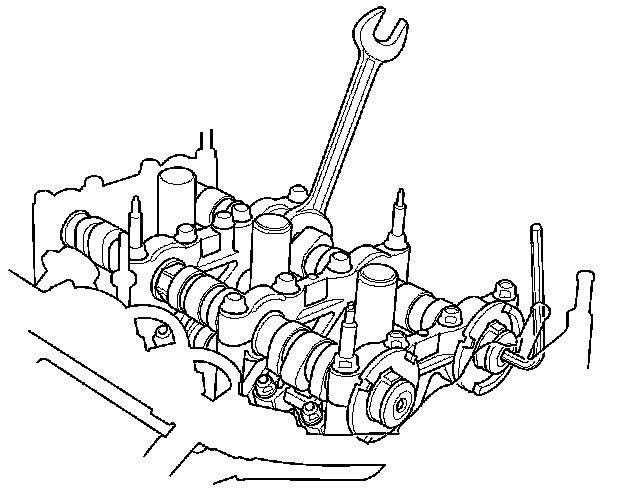

3. Hold the camshaft with an open-end wrench, then loosen the bolt.

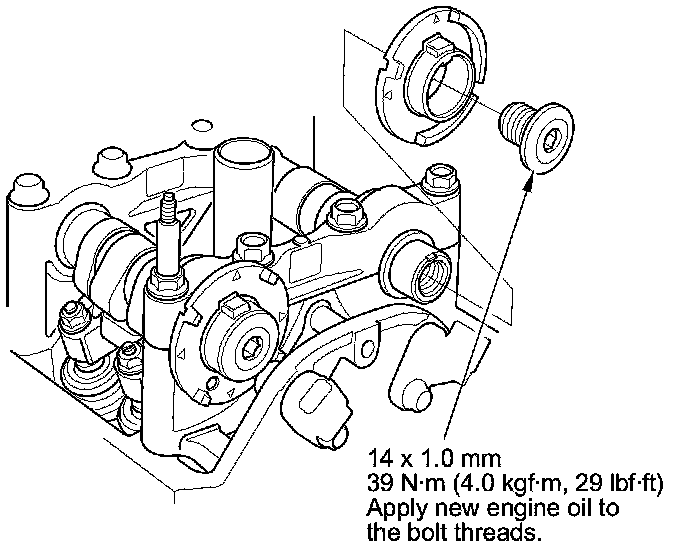

4. Remove CMP pulse plate B.





5. Install CMP pulse plate B in the reverse order of removal.
