Slide Lever Replacement

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the seat covers or the related parts.
  1. Remove the seat (see SEAT REMOVAL/INSTALLATION  ).

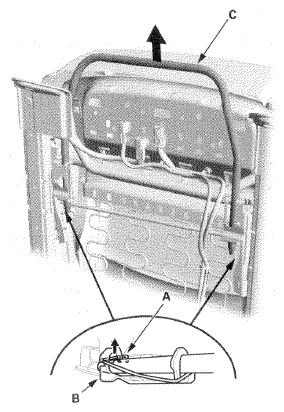

  2. Detach the spring (A) from the lever holder (B), then remove the slide lever (C).
    Fig 1: Removing Slide Lever
    G06953462Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the lever in the reverse order of removal, and push the spring into place securely.
