Engine Mode Switch: Service and Repair

3-Mode Switch Test/Replacement

1. Remove the instrument panel Instrument Panel Removal/Installation.

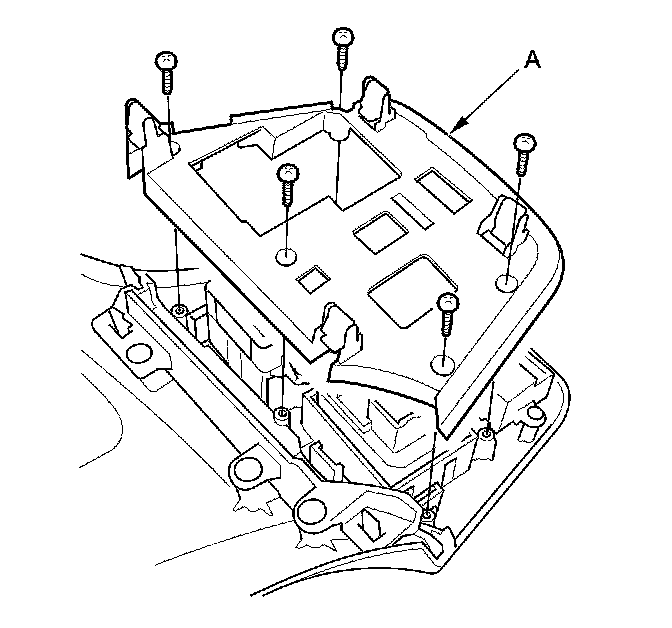

2. Remove the five screws and the cover (A).

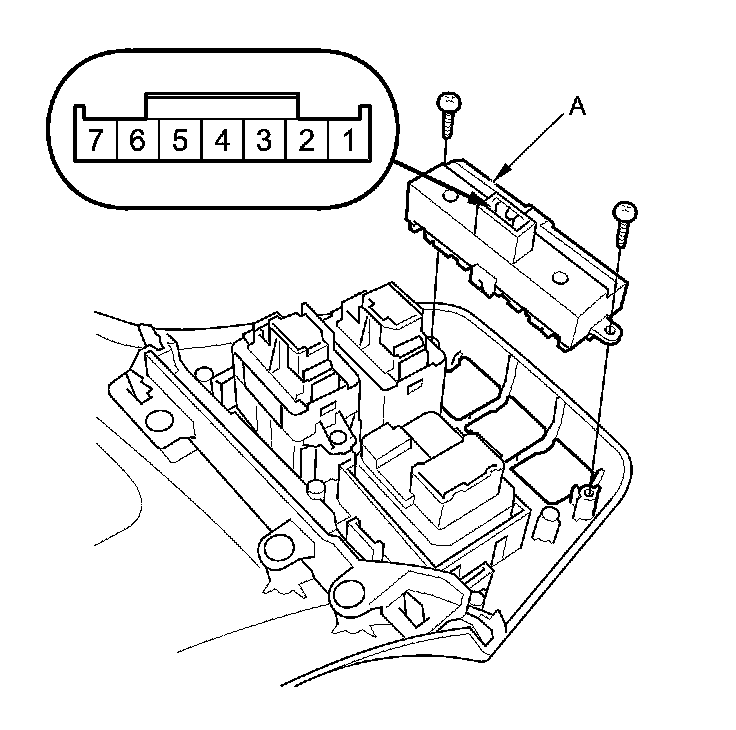

3. Remove the two screws, then remove the 3-Mode switch (A).

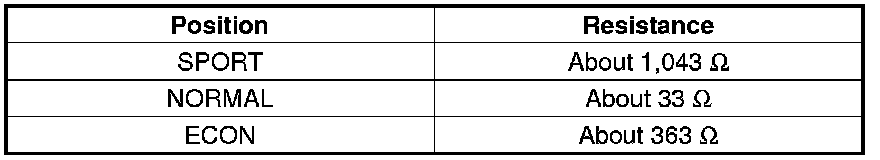

4. Measure the resistance between the 3-Mode switch 7P connector terminals No. 2 and No. 7 in each switch position according to the table.






5. If the resistance is not as specified, replace the switch.

6. Install the switch in the reverse order of removal.
