Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Replacement

1. Raise the vehicle on a lift Service and Repair.

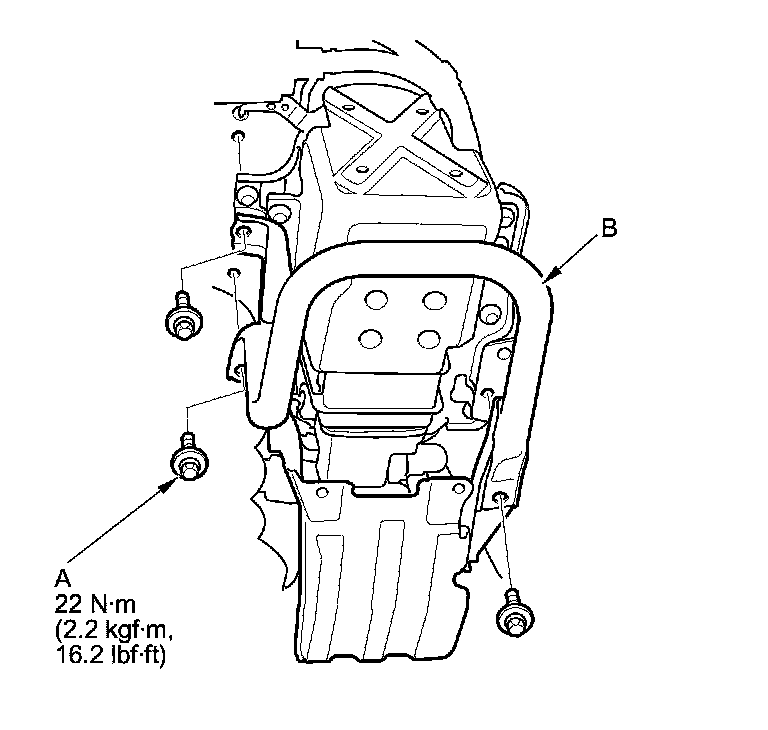

2. Remove the bolts (A), then remove the EVAP canister guard (B).

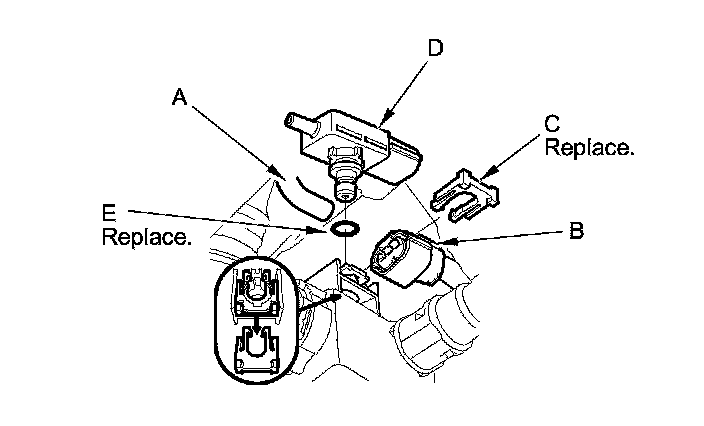

3. Disconnect the hose (A) and the FTP sensor connector (B).






4. Remove the retainer (C), then remove the FTP sensor (D).

5. Install the parts in the reverse order of removal with a new O-ring (E) and a new retainer.
